PIM Shield® Gen 2 Snap-Ins

PIM Shield® Gen 2 Snap-Ins

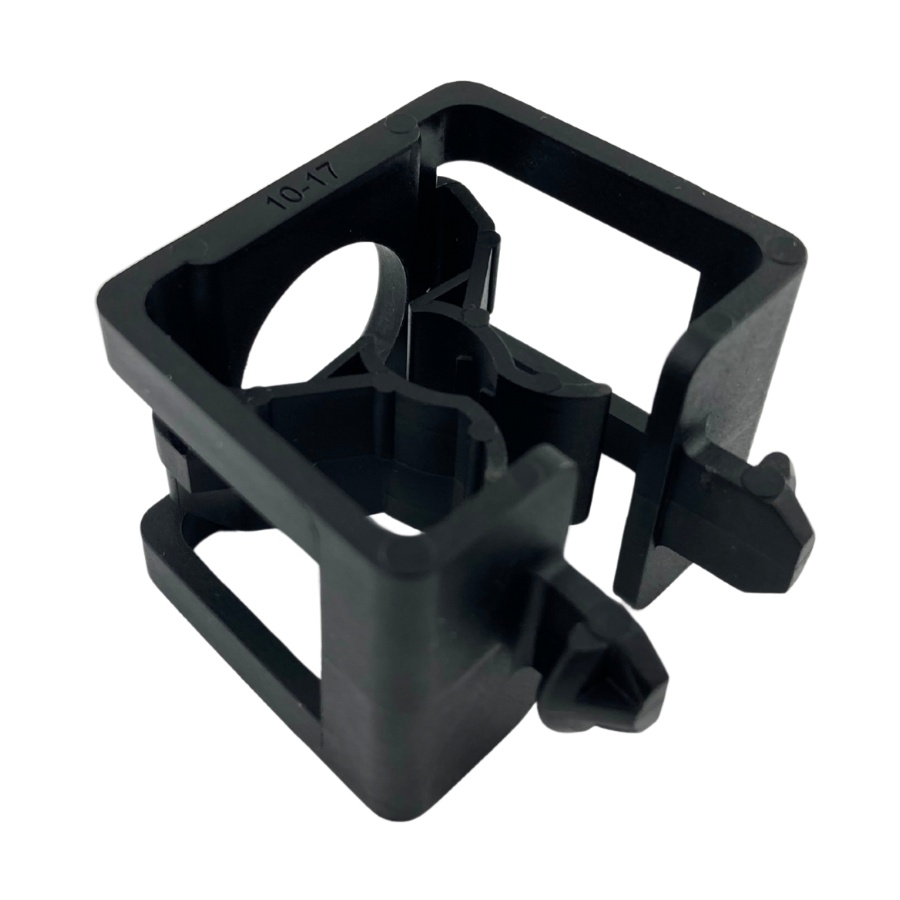

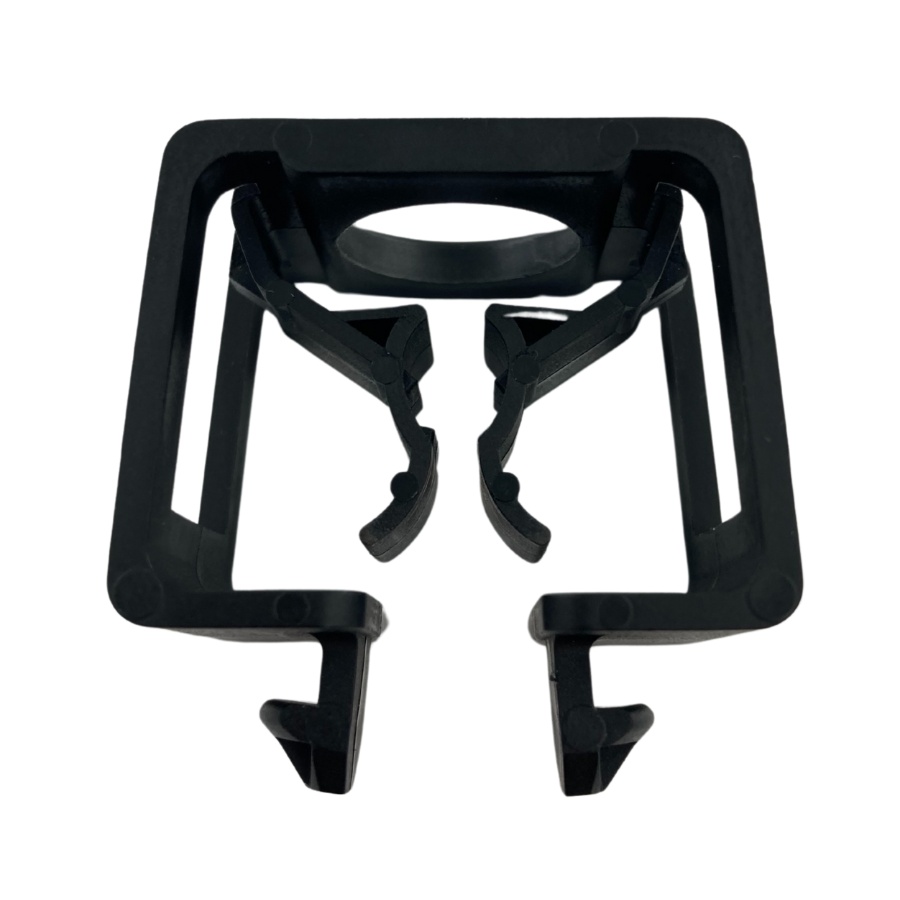

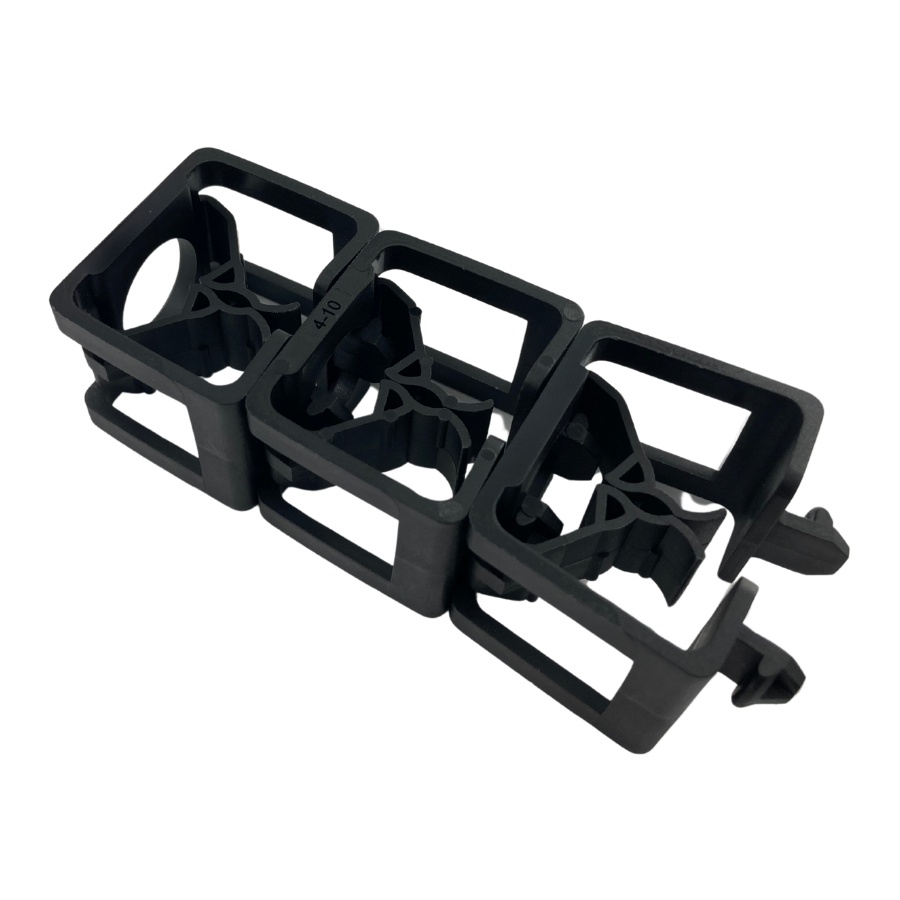

Our Gen 2 PIM Shield® snap-ins deliver a generational leap in both PIM mitigation and installation ease. Constructed from UV-stable, glass-filled polymer, they withstand harsh environments while remaining inherently PIM-free. One-handed, tool-free operation with an expanded insertion zone makes securing cables effortless. This next-generation design offers a more versatile solution by combining two Gen 1 sizes into a single product.

  • Designed to insert into support bars or accessories (sold separately) 0.118″–0.160″ thick with 0.71″–0.76″ diameter holes
  • IM3 < –100 dBm (–143 dBc) when tested per IEC 62037-8 near-field test, 2 × 43 dBm tones under dynamic stimulus
  • Durable in heat cold UV and moisture
  • Inherently PIM-free glass-filled UV-stable polymer
  • Simple, one-handed installation
PIM Shield® Gen 2 Snap-Ins
PIM Shield® Gen 2 Snap-Ins
PIM Shield® Gen 2 Snap-Ins
PIM Shield® Gen 2 Snap-Ins
SKUCable RangeOperating TemperatureWeightPrice
4–11 mm–40 °C to +70 °C2.80 $25.20
10–17 mm–40 °C to +70 °C2.80 $25.20
