PIM Shield® Store
Passive Intermodulation (PIM) Reduction Solutions.
Categories
Monopole Sites
RRU Ring Mount Kit
| SKU | Size Range | Weight |
|---|---|---|
| 10-1/2” - 28” | 113 lbs |
Monopole Mount Kit
| SKU | Pole Diameter | Description | Weight |
|---|---|---|---|
| 17-1/2” - 56” | Six Sector | 271 lbs |
Rooftop Sites
Non-Penetrating Rooftop Frames with RRU Mounts
| SKU | Face Width | Mounting Pipes | Footprint | Mats Required | Weight |
|---|---|---|---|---|---|
| 10’-6” | (4) 2-3/8” x 174” | 92” x 126” | 6 | 1,049 lbs | |
| 12’-6” | (4) 2-3/8” x 174” | 92” x 150” | 8 | 1,108 lbs | |
| 14’-6” | (4) 2-3/8” x 174” | 92” x 174” | 12 | 1,375 lbs |
Cable Support
PIM-Mitigating Polymer Cable Support Bars & Pole Clamps
| SKU | Range | Positions | Weight |
|---|---|---|---|
| 10" | 13 | 3 lbs | |
| 18" | 13 | 3.5 lbs | |
| 18" | 26 | 5.1 lbs |
PIM Shield® Round Member Trapezoid
| SKU | Size | Qty. | Weight |
|---|---|---|---|
| 3-7/16" x 2-1/8" x 1-5/8" | 10 pack | 0.91 lbs |
PIM Shield® Snap-In Cable Support Bars
| SKU | Type | Positions | Qty. | Weight |
|---|---|---|---|---|
| Standard | 13 | 1 | 6.5 lbs | |
| Extended Range | 13 | 1 | 7 lbs | |
| Extended Range | 22 | 1 | 8 lbs | |
| Extended Range | 22 | 1 | 8.5 lbs | |
| Extended Range | 26 | 3 | 29.5 lbs | |
| Extended Range | 44 | 3 | 39 lbs | |
| Extra Bar Kit | 13 | 1 | 3 lbs | |
| Extra Bar Kit | 22 | 1 | 5 lbs |
PIM-Mitigating T-Brackets
| SKU | # of Snap-In Holes | # of 7/16" Holes | Weight |
|---|---|---|---|
| 4 | 8 | 2 lbs | |
| 6 | 14 | 2.3 lbs | |
| 8 | 18 | 2.7 lbs |
Hardware
Stainless Steel Threaded Rod Kits
| SKU | Rod | Kit Components | Weight |
|---|---|---|---|
| 3/8" x 6-1/2" | 10 Rods, 30 each Flat Washers, Lock Washers, and Nuts | 2.45 lbs | |
| 3/8" x 8" | 10 Rods, 30 each Flat Washers, Lock Washers, and Nuts | 2.85 lbs | |
| 3/8" x 9-1/2" | 10 Rods, 30 each Flat Washers, Lock Washers, and Nuts | 3.2 lbs | |
| 3/8" x 12" | 10 Rods, 30 each Flat Washers, Lock Washers, and Nuts | 3.8 lbs |
Galvanized Threaded Rod Kits
| SKU | Rod | Kit Components | Weight |
|---|---|---|---|
| 3/8" x 6-1/2" | 10 Rods, 30 each Flat Washers, Lock Washers, and Nuts | 2.45 lbs | |
| 3/8" x 8" | 10 Rods, 30 each Flat Washers, Lock Washers, and Nuts | 2.85 lbs | |
| 3/8" x 9-1/2" | 10 Rods, 30 each Flat Washers, Lock Washers, and Nuts | 3.2 lbs | |
| 3/8" x 12" | 10 Rods, 30 each Flat Washers, Lock Washers, and Nuts | 3.8 lbs |
Cable Accessories
Plastic Polymer Snap-In Hangers
| SKU | Cable Size Range | AT&T Approved cables | Qty. | Weight |
|---|---|---|---|---|
| 4 to 7 mm | 2 fiber jumpers and 4 fiber jumpers | 10 pack | 0.2 lbs | |
| 7 to 10 mm | RET cables | 10 pack | 0.2 lbs | |
| 10 to 14 mm | 12 & 10 AWG 2C power cables | 10 pack | 0.2 lbs | |
| 14 to 17 mm (1/2") | 8 AWG 2C power cables or 1/2" coax jumpers | 10 pack | 0.2 lbs |
Hybrid Snap-In Hangers
| SKU | Cable Size Range | Qty. | Weight |
|---|---|---|---|
| 13 to 19 mm (1/2") | 10 pack | 0.89 lbs | |
| 26 to 30 mm (7/8") | 10 pack | 0.89 lbs | |
| 36 to 42 mm (1-1/4") | 10 pack | 2.08 lbs | |
| 48 to 52 mm (1-5/8") | 10 pack | 2.08 lbs |
PIM Isolator for Snap-In Hangers
| SKU | Qty. | Weight |
|---|---|---|
| 10 pack | 0.3 lbs |
Cable Cushions
| SKU | Cable Size Range | Hanger | Qty. | Color | Weight |
|---|---|---|---|---|---|
| 4.5 to 6.5 mm | PSHS-1319-10 | 10 pack | Blue | 0.3 lbs | |
| 6.6 to 8.5 mm | PSHS-1319-10 | 10 pack | Gray | 0.29 lbs | |
| 8.6 to 10.5 mm | PSHS-1319-10 | 10 pack | Black | 0.3 lbs | |
| 10.6 to 12.5 mm | PSHS-2630-10 | 10 pack | Orange | 0.5 lbs | |
| 12.6 to 15.5 mm | PSHS-2630-10 | 10 pack | Black | 0.5 lbs | |
| 15.6 to 17.5 mm | PSHS-2630-10 | 10 pack | Gray | 0.4 lbs | |
| 19.6 to 30.3 mm | PSHS-4852-10 | 10 pack | Black | 1.4 lbs |
Universal Barrel Cushions
| SKU | Cable Size Range | Hanger Size | Qty. | Weight |
|---|---|---|---|---|
| 3 mm to 13 mm | 1/2" | 10 pack | 0.25 lbs | |
| 7 holes for 4 mm to 9 mm | 1-5/8" | 10 pack | 1.5 lbs | |
| 4 mm to 14 mm | 7/8" | 10 pack | 0.55 lbs | |
| 14 mm to 25 mm | 1-1/4" | 10 pack | 1 lb | |
| 14 mm to 36 mm | 1-5/8" | 10 pack | 1.3 lbs | |
| 14 mm to 45 mm | 2-1/4" | 10 pack | 2.3 lbs |
Heavy-Duty Barrel Cushion
| SKU | Cable Size Range | Hanger Size | Qty. | Weight |
|---|---|---|---|---|
| 38 mm to 40 mm | 1-5/8" | 10 pack | 1 lb |
Single-Hole Barrel Cushions
| SKU | Cable Size Range | Hanger Size | Qty. | Weight |
|---|---|---|---|---|
| 10 mm to 12 mm | 1/2" | 10 pack | 0.2 lbs | |
| 27 mm to 29 mm | 1-1/4" | 10 pack | 2 lbs |
Cable Blocks
| SKU | Cable Size & Type | Qty. | Weight |
|---|---|---|---|
| Fiber Kit (4 to 6 mm) | 10 pack | 1.3 lbs | |
| 1/4" cable (8 mm) | 10 pack | 0.2 lbs | |
| 3/8" cable & Stranded 10mm & 3/8" Cable | 10 pack | 0.3 lbs | |
| 1/2" Corrugated | 10 pack | 0.55 lbs | |
| 5/8" Corrugated | 10 pack | 0.55 lbs | |
| 7/8" Corrugated | 10 pack | 0.95 lbs | |
| 1-1/4" Corrugated | 10 pack | 1.6 lbs | |
| 1-5/8" Corrugated | 10 pack | 2.65 lbs | |
| 2-1/4" Corrugated | 10 pack | 3.3 lbs |
Galvanized 3/8" Angle Adapters
| SKU | Qty. | Weight |
|---|---|---|
| 10 pack | 4.7 lbs |
Universal Nylon Angle Adapter
| SKU | 10 pack | Weight |
|---|---|---|
| 10 pack | 1.1 lbs |
Standoff Adapters
| SKU | Description | Qty. | Weight |
|---|---|---|---|
| Plastic Standoff Adapters | 10 pack | 8 lbs | |
| Standoff Adapters | 10 pack | 0.3 lbs |
Multi-Function Snap-In Adapter 1 Position
| SKU | Description | Qty. | Weight |
|---|---|---|---|
| PIM Shield Multi-Function Snap-In Adapter, 1 Position | 10 pack | 5.7 lbs |
Multi-Function Snap-In Adapter 2 Position
| SKU | Description | Qty. | Weight |
|---|---|---|---|
| PIM Shield Multi-Function Snap-In Adapter, 2 Position | 10 pack | 9.1 lbs |
Tapes, Chemicals, Banding
Noalox
| SKU | Size | Weight |
|---|---|---|
| 4 oz | 0.3 lbs | |
| 8 oz | 0.3 lbs |
NO-OX Heavy-Duty Rust Preventative and Lubricant
| SKU | Description | Weight |
|---|---|---|
| NO-OX 8 oz can | 0.5 lbs |
ZRC Cold Galvanizing Spray (95% Zinc)
| SKU | Size | Weight |
|---|---|---|
| 12 oz can | 1 lb |
ZRC Galvilite Galvanizing Repair Spray (95% Zinc)
| SKU | Size | Weight |
|---|---|---|
| 12 oz can | 1 lb |
Brite Zinc Spray (69% Zinc)
| SKU | Size | Weight |
|---|---|---|
| 12.5 oz can | 1.1 lbs |
First Zinc Aerosol Spray Can (95% Zinc)
| SKU | Size | Weight |
|---|---|---|
| 12.5 oz can | 1.1 lbs |
Self-Grip Strapping
| SKU | Size | Weight |
|---|---|---|
| 1/2" x 75' Roll | 0.5 lbs | |
| 3/4" x 15' Roll | 0.15 lbs | |
| 3/4" x 75' Roll | 0.7 lbs | |
| 1" x 15' Roll | 0.2 lbs | |
| 1" x 75' Roll | 0.9 lbs |
Hook & Loop Cable Ties
| SKU | Size | Package Qty. | Weight |
|---|---|---|---|
| 1/2" x 8' | 100 | 0.5 lbs |
Hook & Loop Cinch Straps
| SKU | Size | Package Qty. | Weight |
|---|---|---|---|
| 1/2" x 8" | 25 | 0.5 lbs | |
| 3/4" x 12" | 25 | 0.7 lbs | |
| 1'' x 8'' | 25 | 0.01 lbs | |
| 1'' x 12'' | 25 | 0.02 lbs |
Plastic Round Member Adapters
| SKU | Size Range | Qty. | Weight |
|---|---|---|---|
| 1” - 2” | 10 pack | 0.2 lbs | |
| 2" - 3" | 10 pack | 0.3 lbs | |
| 3" - 4" | 10 pack | 0.4 lbs | |
| 4" - 5" | 10 pack | 0.4 lbs | |
| 5'' to 6'' | 10 pack | 0.5 lbs |
Acetal Cable Tie
| SKU | Description | Weight |
|---|---|---|
| Acetal Cable Tie, 50' Reel | 0.8 lbs | |
| Acetal Cable Buckles, 25 pack | 0.4 lbs |
Tie Wraps
| SKU | Description | Qty. | Weight |
|---|---|---|---|
| 16" Acetal Tie Wrap | 50 pack | 0.5 lbs | |
| 27" Acetal Tie Wrap | 25 pack | 0.5 lbs |
Banding Installation Tool
| SKU | Description | Weight |
|---|---|---|
| Acetal Banding Installation Tool | 1 lb |
PIM Mitigation
PIM Shield® Gen 2 Snap-Ins
| SKU | Cable Range | Operating Temperature | Weight |
|---|---|---|---|
| 4–11 mm | –40 °C to +70 °C | 0.2 lbs | |
| 10–17 mm | –40 °C to +70 °C | 0.2 lbs |
PIM Shield® Snap-In Support, 4-Position
| SKU | Qty. | Weight |
|---|---|---|
| 10 | 4.62 lbs |
PIM Shield® 7-Position Trapezoid Snap-In Adapter
| SKU | Description | Position | Qty. | Weight |
|---|---|---|---|---|
| 7-Position Trapezoid Snap-In Adapter | 7 | 5 | 1.2 lbs |
PIM Shield® Universal Mounting System
| SKU | Type | Material | Case Dimensions | Weight |
|---|---|---|---|---|
| Round Member Adapter | UV-Stable Glass-Filled Nylon | 15" x 11" x 8.0" | 9.3 lbs | |
| Angle Adapter, 1/4" | UV-Stable Glass-Filled Nylon | 15" x 11" x 8.0" | 11.6 lbs | |
| Angle Adapter, 3/8" | UV-Stable Glass-Filled Nylon | 15" x 11" x 8.0" | 11.6 lbs | |
| Threaded Rod Adapter Block | UV-Stable Glass-Filled Nylon | 15" x 11" x 8.0" | 9.1 lbs | |
| Snap-in Adapter Block, 3-Position | UV-Stable Glass-Filled Nylon | 20" x 12.5" x 8.5" | 16.9 lbs |
PIM Blankets
| SKU | Length | Width | Loops | Corners | Weight |
|---|---|---|---|---|---|
| 120 in | 60 in | 6 | Rounded | 15.5 lbs | |
| 30 in | 30 in | 4 | Rounded | 2.4 lbs | |
| 60 in | 60 in | 4 | Rounded | 8 lbs | |
| 60 in | 30 in | 4 | Rounded | 4.4 lbs |

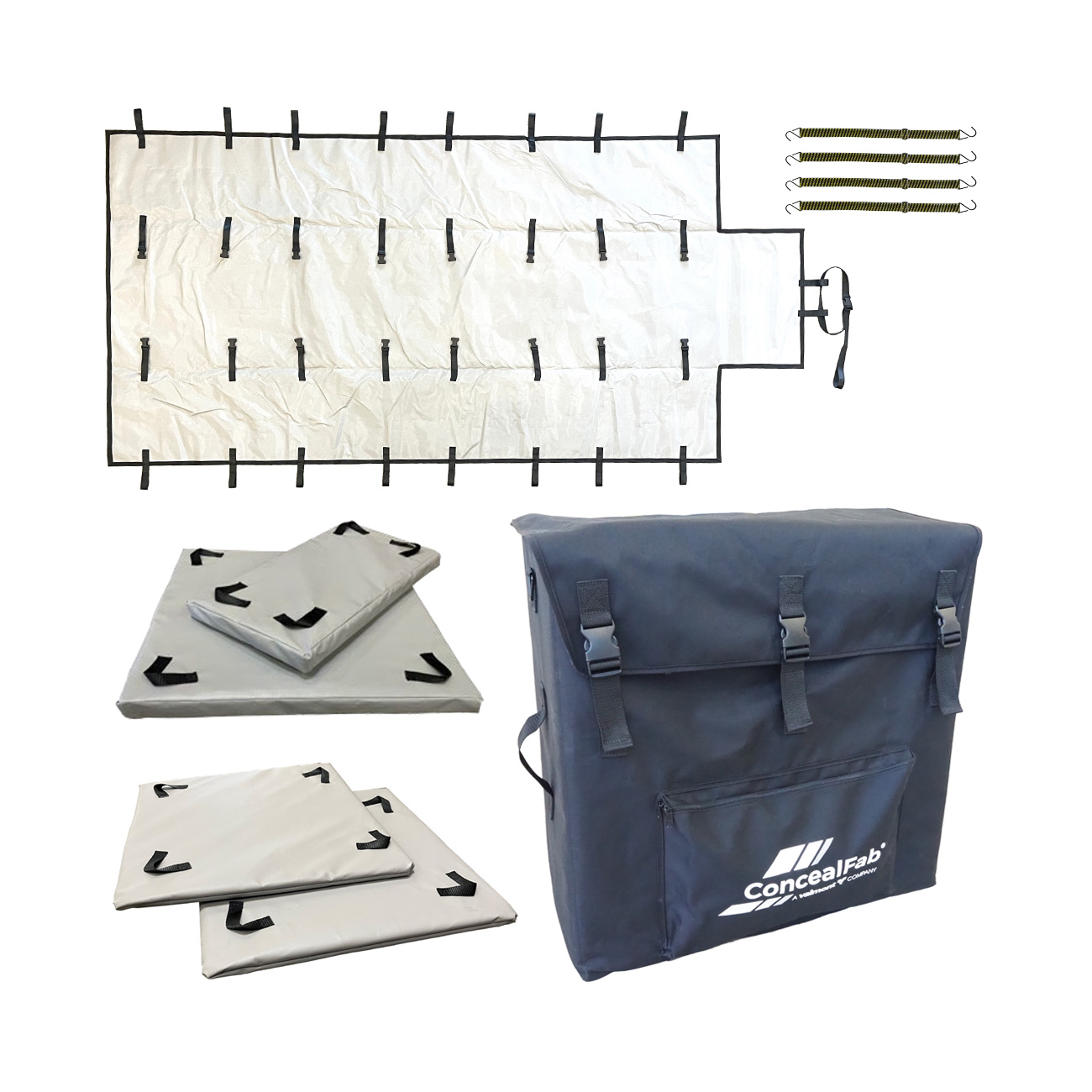

PIM Absorber Kits
| SKU | Description | Included Components | Weight |
|---|---|---|---|
| PIM Absorber Front Blanket Kit, Large Antennas | 1x PIM blanket, 4x RF absorber panels (24"x24"x4"), 1x pole attach strap, 4x bungee straps | 28.5 lbs | |
| PIM Absorber Kit, Back, 2-IN | 3x RF absorber panels (24"x24"x2"), 2x RF absorber panels (12"x24"x2") | 17 lbs | |
| PIM Absorber Kit, Back, 1-IN | 3x RF absorber panels (24"x24"x1"), 2x RF absorber panels (12"x24"x1") | 14 lbs | |
| Absorber Kit Soft Case | 28"x28"x13" main compartment, front pouch for bungee straps | 7 lbs | |
| PIM Absorber Bundle, Large Antennas | 901728 Front Kit, 901162 Back Kit (1"), 2x 901230 Soft Cases | 55 lbs |
PIM Shield® Tape
| SKU | Roll Width | Roll Length | Color | Weight |
|---|---|---|---|---|
| 12 in | 25 ft. | Black | 15 lbs | |
| 12 in | 25 ft. | White | 15 lbs | |
| 6 in | 25 ft. | Black | 7.5 lbs | |
| 6 in | 25 ft. | White | 7.5 lbs |
