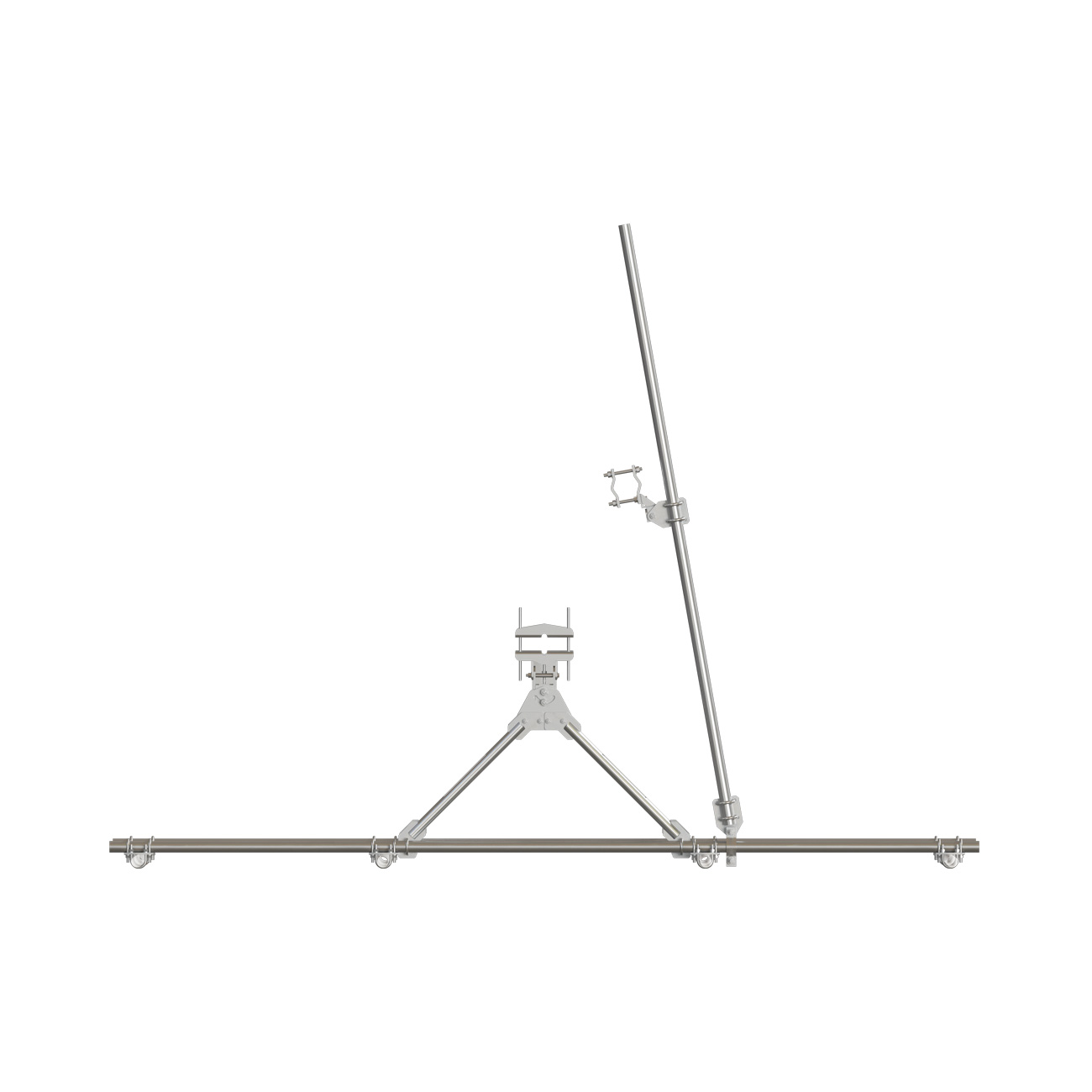

SD V-Frames 14'-6'' Face Width 1 Stiff Arm
SD V-Frames 14'-6'' Face Width 1 Stiff Arm
Part Number: VFA14-SD-S
Face Width: 14'-6''
Hardware to Mount (X) Antennas: 4
Stiff Arms: 1
Leg Sizes: 1-1/2'' to 9-1/2'' Round Legs and 3'' to 6'' Angles
Weight: 443 lb
Call for availability.
• Feature our BCAM™ Taper Adjustment System
• Feature our Quick-Plate™ for easy grounding and addition of RRU mounting pipes or unistrut
• Round-member face offers lower wind resistance
• Frames rotate for easy azimuth adjustment
• Include stiff arm and hardware to mount 2-3/8” antenna mounting pipes (ordered separately)
• Contact us for load and engineering data
• When ordering V-frames for use with round chimney mounts or monopole direct frame connection kits add “-NLB” to the part number to get the frame without the leg bracket hardware
