Reinforcement Kit for Platforms or T-Arms

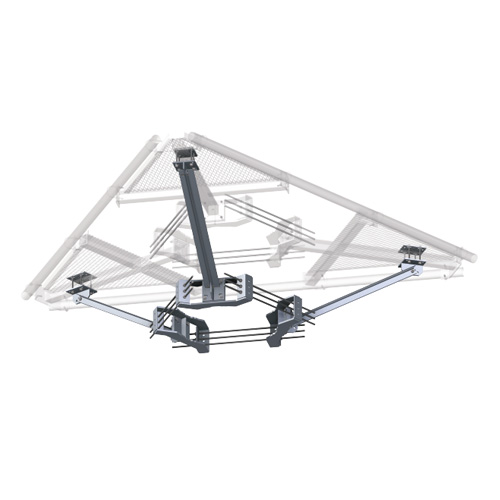

This kit is used to reinforce 3-sector platforms or T-arms to provide additional dead load capacity.
- Simple bolt-on reinforcement kit includes ring mount and support arms
- Fits round or polygon poles from 12” to 45” diameter, or up to 60” with the addition of the RM-ADK large pole adapter kit
- The maximum additional vertical load capacity gained is 4,000 lb per sector arm (12,000 lb total)
- PRK-1245, PRK-1245L, and PRK-NA hardware kits fit up to 4” round or square tube standoff arms
- Contact us for load and engineering data
| SKU | Description | Pole Diameter | Horizontal Connection | Angle Size | Weight | Price |
|---|---|---|---|---|---|---|
| Reinforcement Kit | 12" to 45" | 4” x 4” Max | 2L 2-1/2” x 2-1/2” x 3/16” x 52” | 465.00 | $2,560.00 | |
| Long Reinforcement Kit | 12" to 45" | 4” x 4” Max | 2L 2-1/2” x 2-1/2” x 3/16” x 84” | 520.00 | $3,190.00 | |
| Attachment Hardware Only | 12" to 45" | 4” x 4” Max | Order Separately | 379.00 | $2,180.00 | |
| Reinforcement Kit, Wide Connection | 12" to 45" | 6” x 6” Max | 2L 2-1/2” x 2-1/2” x 3/16” x 84” | 564.12 | $3,600.00 | |
| Reinforcement Kit, Heavy-Duty Angle | 12" to 45" | 5” x 5” Max | 2L 3” x 3” x 1/4” x 84" | 610.00 | $4,205.00 |
Works With
| SKU | Description | Weight | Price |
|---|---|---|---|
| Large-Pole Adapter Kit (45" to 60" Pole Diameter) | 102.00 | $610.00 |
