Quad Reinforcement Kit for Platforms or T-Arms
Categories

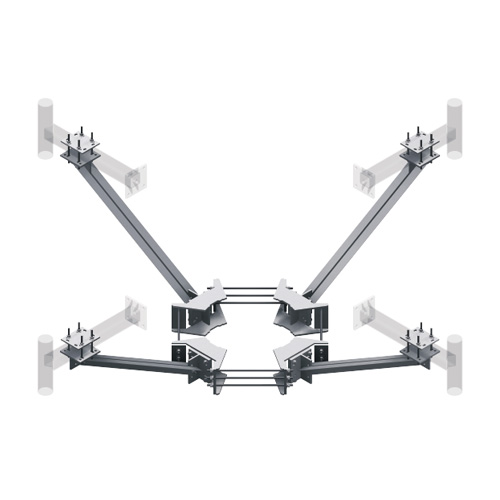

Quad Reinforcement Kit for Platforms or T-Arms
This kit is used to reinforce 4-sector platforms or T-arms to provide additional dead load capacity.
- Simple bolt-on reinforcement kit includes ring mount and support arms
- Fits round or polygon poles from 12” to 60” diameter
- Increase platform dead load capacity up to 5,600 lb per sector
- The maximum additional vertical load capacity gained is 3,000 lb per sector arm (12,000 lb total)
- Attaching hardware fits up to 4” round or square tube standoff arms
- Contact us for load and engineering data
| SKU | Description | Pole Diameter | Horizontal Connection | Angle Size | Weight | Price |
|---|---|---|---|---|---|---|
| Reinforcement Kit | 12" to 60" | 4” x 4” Max | 2L 2-1/2” x 2-1/2” x 3/16” x 52" | 665.00 | $3,400.00 | |
| Long Reinforcement Kit | 12" to 60" | 4” x 4” Max | 2L 2-1/2” x 2-1/2” x 3/16” x 84" | 735.00 | $4,030.00 | |
| Attachment Hardware Only | 12" to 60" | 4” x 4” Max | Order Separately | 516.00 | $2,625.00 |
