Two-Hole Compression Lugs
Categories
Two-Hole Compression Lugs
These lugs are used to attach ground wires to bus bars and equipment.
- UL listed

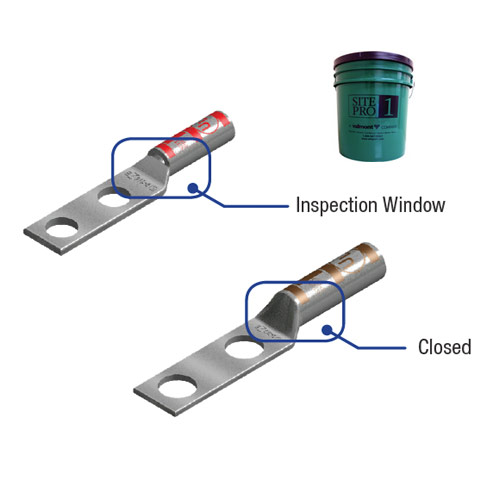

- Available with or without inspection window
- Tin-plated copper
- Chamfered ends allow easy wire insertion
- Longer barrel lengths than many other brands
- Color coded
- Available individually or in bucket quantities
| SKU | Gauge | Stud Size | Hole Spacing | Color | Type | Qty. | Weight | Price |
|---|---|---|---|---|---|---|---|---|
| 14-10 | 1/4" | 5/8" | No Color | Inspection Window | Each | 0.02 | $1.50 | |
| 14-10 | 1/4" | 5/8" | No Color | Inspection Window | 250 | 4.00 | $350.00 | |
| 8 | #10 | 5/8" | Red | Closed | Each | 0.01 | $1.30 | |
| 8 | #10 | 5/8" | Red | Closed | 250 | 6.00 | $295.00 | |
| 8 | 1/4" | 5/8" | Red | Inspection Window | Each | 0.05 | $1.30 | |
| 8 | 1/4" | 5/8" | Red | Inspection Window | 250 | 15.00 | $295.00 | |
| 6 | 1/4" | 5/8" | Blue | Inspection Window | Each | 0.01 | $1.30 | |
| 6 | 1/4" | 5/8" | Blue | Inspection Window | 250 | 7.00 | $295.00 | |
| 6 | 1/4" | 5/8" | Blue | Closed | Each | 0.01 | $1.30 | |
| 6 | 1/4" | 5/8" | Blue | Closed | 250 | 6.45 | $295.00 | |
| 6 | 3/8" | 5/8" | Blue | Inspection Window | Each | 0.05 | $1.45 | |
| 6 | 3/8" | 5/8" | Blue | Inspection Window | 250 | 15.00 | $330.00 | |
| 6 | 3/8" | 1" | Blue | Inspection Window | Each | 0.05 | $1.45 | |
| 6 | 3/8" | 1" | Blue | Inspection Window | 250 | 15.00 | $330.00 | |
| 6 | 3/8" | 1" | Blue | Closed | Each | 0.01 | $1.65 | |
| 6 | 3/8" | 1" | Blue | Closed | 250 | 7.30 | $380.00 | |
| 2 | 1/4" | 5/8" | Brown | Inspection Window | Each | 0.05 | $1.75 | |
| 2 | 1/4" | 5/8" | Brown | Inspection Window | 250 | 10.00 | $400.00 | |
| 2 | 3/8" | 1" | Brown | Inspection Window | Each | 0.05 | $1.75 | |
| 2 | 3/8" | 1" | Brown | Inspection Window | 250 | 15.00 | $400.00 | |
| 2 | 3/8" | 1" | Brown | Closed | Each | 0.05 | $1.75 | |
| 2 | 3/8" | 1" | Brown | Closed | 250 | 15.00 | $400.00 | |
| 2 Solid | 3/8" | 1" | White | Inspection Window | Each | 0.05 | $1.75 | |
| 2 Solid | 3/8" | 1" | White | Inspection Window | 250 | 15.00 | $400.00 | |
| 2 Solid | 3/8" | 1" | White | Closed | Each | 0.05 | $1.75 | |
| 2 Solid | 3/8" | 1" | White | Closed | 250 | 15.00 | $400.00 | |
| 2/0 | 3/8" | 1" | Black | Inspection Window | Each | 0.10 | $3.05 | |
| 2/0 | 3/8" | 1" | Black | Inspection Window | 250 | 23.05 | $695.00 | |
| 4/0 | 3/8" | 1" | Purple | Inspection Window | Each | 0.15 | $5.70 | |
| 4/0 | 3/8" | 1" | Purple | Inspection Window | 250 | 23.05 | $1,305.00 |
