Universal Two-Hole Compression Lugs
These lugs are used to attach ground wires to bus bars and equipment.
- UL listed

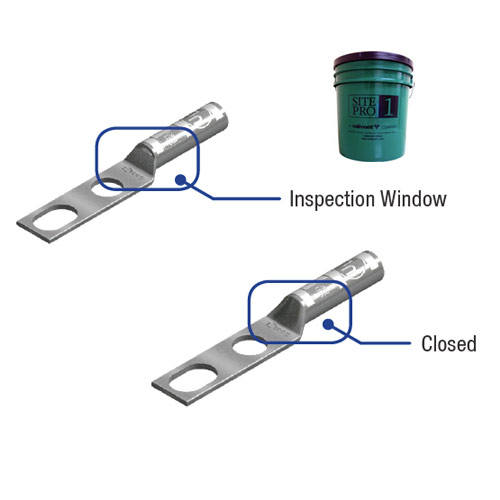

- Available with or without inspection window
- Tin-plated copper
- Universal hole design allows 0.75" - 1.0" spacing
- Chamfered ends allow easy wire insertion
- Longer barrel lengths than many other brands
- Color coded
- Available individually or in bucket quantities
| SKU | Gauge | Stud Size | Hole Spacing | Color | Type | Qty. | Weight | Price |
|---|---|---|---|---|---|---|---|---|
| 6 | 3/8" | 0.75" - 1" | Blue | Inspection Window | Each | 0.05 lbs | $1.45 | |
| 6 | 3/8" | 0.75" - 1" | Blue | Inspection Window | 250 | 7.25 lbs | $330.00 | |
| 6 | 3/8" | 0.75" - 1" | Blue | Closed | Each | 0.01 lbs | $1.45 | |
| 6 | 3/8" | 0.75" - 1" | Blue | Closed | 250 | 7.25 lbs | $330.00 | |
| 2 Solid | 3/8" | 0.75" - 1" | White | Inspection Window | Each | 0.05 lbs | $1.85 | |
| 2 Solid | 3/8" | 0.75" - 1" | White | Inspection Window | 250 | 15 lbs | $430.00 | |
| 2 Solid | 3/8" | 0.75" - 1" | White | Closed | Each | 0.05 lbs | $1.85 | |
| 2 Solid | 3/8" | 0.75" - 1" | White | Closed | 250 | 9 lbs | $430.00 | |
| 2 | 3/8" | 0.75" - 1" | Brown | Inspection Window | Each | 0.05 lbs | $1.85 | |
| 2 | 3/8" | 0.75" - 1" | Brown | Inspection Window | 250 | 15 lbs | $430.00 | |
| 2 | 3/8" | 0.75" - 1" | Brown | Closed | Each | 0.05 lbs | $1.85 | |
| 2 | 3/8" | 0.75" - 1" | Brown | Closed | 250 | 9 lbs | $430.00 |
