Categories

Tower Sites

XD Series™ V-Frames

SKU	Item Master	Face Width	Antenna Pipe Hardware For	Stiff Arm Qty.	Mounts to Leg Sizes	Weight
VFA12-XDS-BF Details	ANT.59449	12’	4 Pipes (Sold Separately)	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	499 lbs
VFA10-XDS-BF Details	ANT.59452	10’	4 Pipes (Sold Separately)	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	475 lbs
VFA10-XD-BF Details	ANT.59453	10’	4 Pipes (Sold Separately)	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	568 lbs
VFA8-XD-NPNH Details	ANT.59496	8’	3 Pipes (Sold Separately)	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	695 lbs
VFA8-XDS-NPNH Details	ANT.59489	8’	3 Pipes (Sold Separately)	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	601 lbs
VFA8-XD-BF Details	ANT.59495	8’	3 Pipes (Sold Separately)	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	548 lbs
VFA8-XDS-BF Details	ANT.59491	8’	3 Pipes (Sold Separately)	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	455 lbs
VFA14-XD-BF Details	ANT.59456	15’	4 or 5 Pipes (Sold Separately)	2	N/A	607 lbs
VFA12-XD-BF Details	ANT.59461	13’	4 Pipes (Sold Separately)	2	N/A	593 lbs
VFA14-XDS-BF Details	ANT.59458	14’	4 Pipes (Sold Separately)	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	513 lbs
VFA14-XD-NPNH Details	ANT.59459	14’	4 or 5 Pipes (Sold Separately)	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	754 lbs
VFA14-XDS-NPNH Details	ANT.59446	14’	4 Pipes (Sold Separately)	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	661 lbs
VFA12-XD-NPNH Details	ANT.59462	12’	4 Pipes (Sold Separately)	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	740 lbs
VFA12-XDS-NPNH Details	ANT.59455	12’	4 Pipes (Sold Separately)	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	646 lbs
VFA10-XD-NPNH Details	ANT.59451	10’	4 Pipes (Sold Separately)	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	715 lbs
VFA10-XDS-NPNH Details	ANT.59454	10’	4 Pipes (Sold Separately)	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	621 lbs

XD Series™ V-Frames (With Pipe)

SKU	Item Master	Face Width	Antenna Mounting Qty.	Stiff Arm	Mounts to Leg Sizes	Mounting Pipes	Weight
VFA8-XDS-A3 Details	BLD.68158	9'	3	10' (1)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	3 - 2-7/8" x120" Mounting Pipes	827 lbs
VFA8-XDS3-A9 Details	N/A	9'	9	10' (3)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	9 - 2-7/8"x120" Mounting Pipes	2,542 lbs
VFA10-XDS-A3 Details	BLD.68159	11'	3	10' (1)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	3 - 2-7/8" x 120" Mounting Pipes	858 lbs
VFA10-XDS3-A9 Details	N/A	11'	9	10' (3)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	9 - 2-7/8"x120" Mounting Pipes	2,542 lbs
VFA12-XD-A4 Details	BLD.68160	13'	4	10' (2)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	4 - 2-7/8" x 120" Mounting Pipes	1,050 lbs
VFA12-XD3-A12 Details	N/A	13'	12	10' (6)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	12 - 2-7/8"x120" Mounting Pipes	3,117 lbs
VFA14-XD-A4 Details	BLD.68161	15'	4	10' (2)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	4 - 2-7/8" x 120" Mounting Pipes	1,064 lbs
VFA14-XD3-A12 Details	N/A	15'	12	10' (6)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	12 - 2-7/8"x120" Mounting Pipes	3,160 lbs
VFA14-XD-A5 Details	BLD.68162	15'	5	10' (2)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	5 - 2-7/8" x 120" Mounting Pipes	1,185 lbs
VFA14-XD3-A15 Details	N/A	15'	15	10' (6)	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	15 - 2-7/8"x120" Mounting Pipes	3,520 lbs

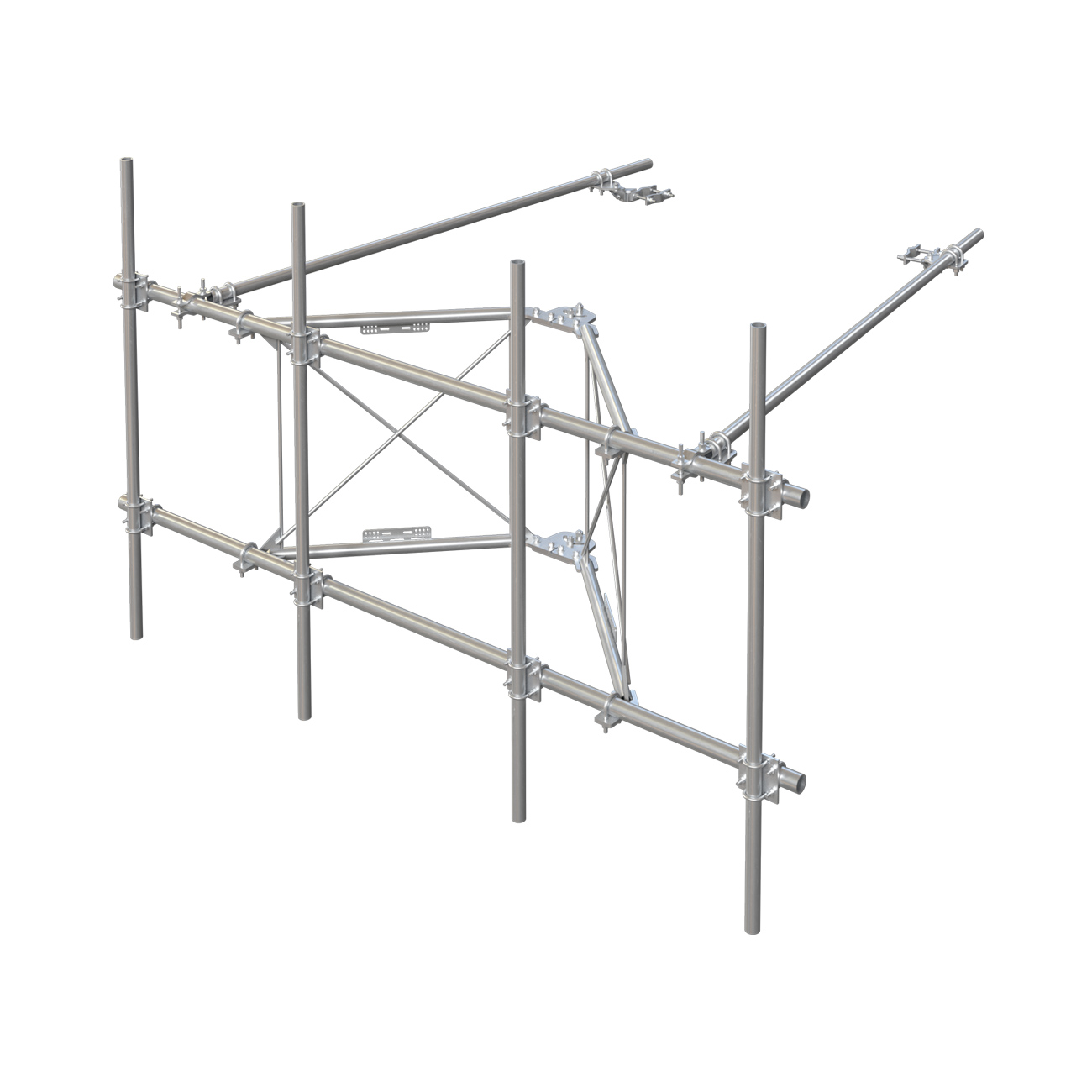

XD Series™ V-Frames (With Pipe, No BCAM™)

SKU	Item Master	Face Width	Antenna Mounting Qty.	Stiff Arm Qty.	Weight
VNB8-XDS-A3 Details	BLD.67307	9'	3	1	670 lbs
VNB10-XDS-A3 Details	BLD.67262	11'	3	1	700 lbs
VNB12-XD-A4 Details	BLD.67325	13'	4	2	893 lbs
VNB14-XD-A4 Details	BLD.67273	15'	4	2	907 lbs
VNB14-XD-A5 Details	BLD.67329	15'	5	2	1,185 lbs

HD Series™ V-Frames

SKU	Item Master	Face Width	Antenna Pipe Hardware For	Stiff Arm Qty.	Mounts to Leg Sizes	Weight
VFA6-HD-S Details & Purchase	ANT.57082	7'	2 Pipes (Sold Separately)	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	522 lbs
VFA8-HD Details & Purchase	ANT.59487	9'	3 Pipes (Sold Separately)	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	595 lbs
VFA10-HDS-NPNH Details	ANT.55969	11’	N/A	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	558 lbs
VFA10-HD-NPNH Details	ANT.55984	11’	N/A	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	643 lbs
VFA12-HDS-NPNH Details	ANT.55981	13’	N/A	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	582.6 lbs
VFA12-HD-NPNH Details	ANT.55995	13’	N/A	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	662 lbs
VFA14-HD-NPNH Details	ANT.56004	15’	N/A	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	681.48 lbs
VFA14-HD80-NPNH Details	ANT.56002	15’	N/A	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	749.14 lbs
VFA10-HDS-BF Details	ANT.55994	11’	N/A	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	400 lbs
VFA10-HD-BF Details	ANT.56012	11’	N/A	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	490 lbs
VFA12-HDS-BF Details	ANT.55966	13’	N/A	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	437 lbs
VFA12-HD-BF Details	ANT.55991	12’	N/A	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	514 lbs
VFA14-HD-BF Details	ANT.55988	15'-0"	N/A	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	534 lbs
VFA14-HD80-BF Details	ANT.55972	15’	N/A	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	600 lbs

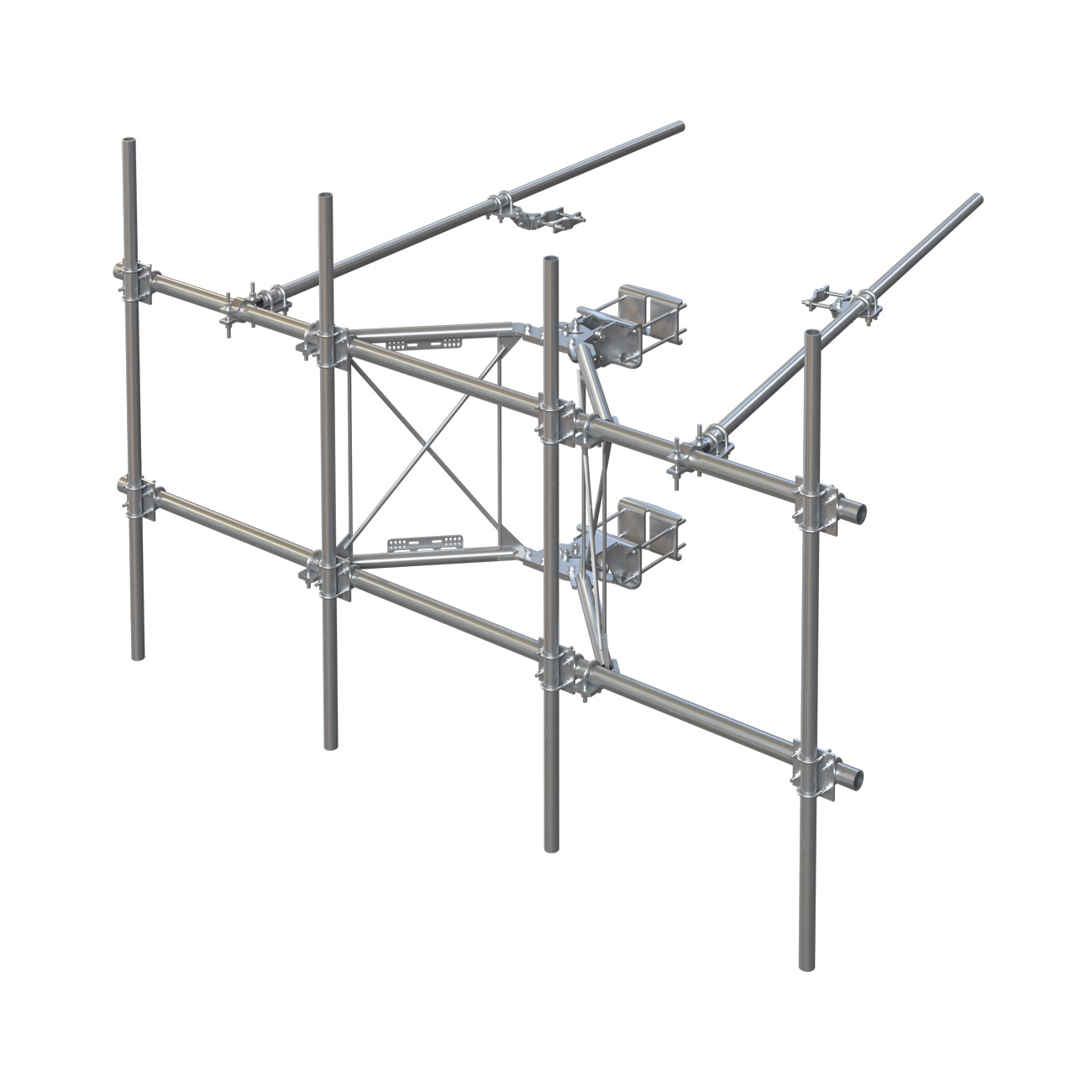

HD Series™ V-Frames (With Pipe)

SKU	Item Master	Face Width	Antenna Pipe Hardware For	Stiff Arm Qty.	Mounts to Leg Sizes	Weight
VFA6-HDS-A2 Details	BLD.68089	7"	2 Pipes	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	673 lbs
VFA8-HDS-A3 Details	BLD.68090	9"	3 Pipes	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	771 lbs
VFA8-HD-A3 Details	BLD.68091	9"	3 Pipes	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	862 lbs
VFA10-HDS-A3 Details	BLD.68092	11"	3 Pipes	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	802 lbs
VFA10-HD-A3 Details	BLD.68108	11"	3 Pipes	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	893 lbs
VFA12-HDS-A4 Details	BLD.68109	13"	4 Pipes	1	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	880 lbs
VFA12-HD-A4 Details	BLD.68110	13"	4 Pipes	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	903 lbs
VFA14-HD-A4 Details	BLD.68111	15"	4 Pipes	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	1,098 lbs
VFA14-HD-A5 Details	BLD.68112	15"	5 Pipes	2	1-1/2" to 9-1/2" Round Legs and 3" to 6" Angles	1,160 lbs

Extreme Duty™ VOG-Frames

SKU	Item Master	Face Width	Stiff Arm Qty.	Mounts to Leg Sizes	Stand-Off Distance	Weight
VOG14-NPNH Details & Purchase	ANT.55971	14’-5”	2	1-1/2” to 9-1/2” Round Legs and 3” to 6” Angles	60”	914.8 lbs

V-Frame Pipe Mount Kit

SKU	Item Master	Description	RRU Pipe Qty.	Weight
VIC-PM Details	N/A	Allows for additional RRU locations	Up to 3	63.99 lbs
VPM-K Details & Purchase	ANT.59488	Designed for XD Series™ and HD Series™ Sector Frames	1	21 lbs

Full Universal RRU Mount

SKU	Item Master	Description	Weight
RRU-FU2 Details & Purchase	ANT.57080	Universal RRU Mount	50.39 lbs

Ultimate Stand-Off Frame

SKU	Item Master	Stand-Off	Weight
USF-2U Details & Purchase	ANT.55114	24''	125 lbs
USF-3U Details & Purchase	ANT.55118	36''	141.51 lbs
USF-4U Details & Purchase	ANT.55116	45''	165 lbs

R5 Standard-Duty Universal Pipe Mount Kit

SKU	Item Master	Pipe	Mounts to Leg Sizes	Weight
R5-LL Details & Purchase	ANT.56783	4-1/2” x 72”	Tubular legs 5" to 14" and angle legs 3" to 8"	250 lbs

R6 Heavy-Duty Universal Pipe Mount Kit

SKU	Item Master	Pipe	Mounts to Leg Sizes	Weight
R6 Details & Purchase	ANT.54762	4-1/2” x 72”	Tubular legs 1-1/2” to 9-1/2” and angle legs 3" to 6"	263.03 lbs

Universal Tubular-Arm Pipe Mounts

SKU	Item Master	Weight
TAP-472 Details & Purchase	ANT.14752	240 lbs

Universal Face Pipe Mount Assembly

SKU	Item Master	Sectors	Face Pipes	Weight
FACE-ASY1-30126 Details & Purchase	ANT.54768	One	(2) 2-7/8” x 11'	660 lbs
FACE-ASY1-3126 Details & Purchase	ANT.54745	One	(2) 3-1/2” x 11'	690 lbs
FACE-ASY1-4126 Details & Purchase	ANT.54765	One	(2) 4-1/2” x 11'	755 lbs

Panel Antenna Stand-Off Mounts

SKU	Item Master	Stand-Off	Antenna Pipe Size	Mounting Pipe Size	Pipe Diameter	Weight
PM1 Details & Purchase	ANT.55115	1’	120"	60”	2-3/8” OD	60 lbs
PM2 Details & Purchase	ANT.55117	2’	120”	60"	2-3/8” OD	68 lbs
PM1-278 Details & Purchase	ANT.59447	1’	120"	60”	2-7/8” OD	100 lbs
PM2-278 Details & Purchase	ANT.59460	2’	120"	60”	2-7/8” OD	113 lbs

Inside Tower Stand-Off Mounts

SKU	Item Master	Stand-Off	Pipe Diameter	Antenna Pipe Size	Mounting Pipe Size	Weight
PIM-SOS1 Details	ANT.58924	1’	2-7/8” OD	120"	60”	94.69 lbs
PIM-SOS2 Details	ANT.58903	2’	2-7/8” OD	120"	60”	94.69 lbs

Pipe V-Style Sector Frame Stabilizer Kits

SKU	Item Master	Stabilizer Direction	Stabilizer Material	Stand-Off Distance	Weight
VSK-TH Details & Purchase	CEQ.53331	Horizontal	Pipe	24” to 36”	98 lbs
VSK-TH-L Details & Purchase	CEQ.53319	Horizontal	Pipe	36” to 48”	120 lbs
VSK-TV Details & Purchase	CEQ.53321	Vertical	Pipe	24” to 36”	100 lbs
VSK-TV-L Details & Purchase	CEQ.53328	Vertical	Pipe	36” to 48”	118 lbs

Pipe V-Style Sector Frame Reinforcement Kits

SKU	Item Master	Stabilizer Direction	Stand-Off Distance	Weight
VSK-SFR Details & Purchase	CEQ.53338	Horizontal and Vertical	24” to 36”	200 lbs
VSK-SFR-L Details & Purchase	CEQ.53339	Horizontal and Vertical	36” to 48”	236 lbs

Angle Sector Frame Stabilizer Kits

SKU	Item Master	Stabilizer Direction	Stabilizer Material	Stand-Off Distance	Weight
SFS-H Details & Purchase	ANT.16460	Horizontal	Angle	24” to 36”	67 lbs
SFS-H-L Details & Purchase	CEQ.53324	Horizontal	Angle	36” to 48”	77 lbs
SFS-V Details & Purchase	ANT.16461	Vertical	Angle	24” to 36”	66 lbs
SFS-V-L Details & Purchase	CEQ.53329	Vertical	Angle	36” to 48”	77 lbs

Angle Sector Frame Reinforcement Kits

SKU	Item Master	Stabilizer Direction	Stand-Off Distance	Weight
SFR-K Details & Purchase	ANT.16456	Horizontal and Vertical	24” to 36”	132 lbs
SFR-K-L Details & Purchase	ANT.16458	Horizontal and Vertical	36” to 48”	153 lbs

Tube Reinforcement Kit

SKU	Item Master	Sectors	Horizontal Connection	Angle SIze	Weight
PRK-FMA1 Details & Purchase	ANT.54744	1	5” x 5” Max	2L 2-1/2” x 2-1/2” x 3/16” x 84”	110 lbs

BCAM™ Series

SKU	Item Master	Description	Weight
BCAM-HD6XT Details	BLD.68085	6 Degree Taper Extension Kit	90.36 lbs
BCAM-HD Details & Purchase	BLD.68078	Attaches HD Series™ and SD Series™ V-Frames to Tower	120 lbs

BCAM™ Large Leg HD Adapter Kits

SKU	Item Master	Description	Weight
BCAM-HDLL Details & Purchase	ANT.54763	Attaches to #12 breakdown legs	134 lbs
BCAM-HDLL-AA Details & Purchase	ANT.54760	Attaches to 7" to 12" 90° angle legs or #12 breakdown legs	131 lbs

Universal Sliding Pipe Stiff Arm Assemblies

SKU	Item Master	Outer Diameter (OD)	Length	Weight
SPTB Details & Purchase	ANT.51650	2-3/8"	120"	89 lbs
SPTB-U Details	ANT.51650	2-3/8"	120"	89 lbs
SPTB278 Details	ANT.55962	2-7/8"	120"	113 lbs
SPTB-U-NP Details & Purchase	BLD.68136	N/A	N/A	53 lbs

Sector Frame Stiff Arm Kits

SKU	Item Master	Pipe	Weight
STK-U Details & Purchase	ANT.54754	Light Duty 2-3/8” x 120” Stiff Arm	56 lbs

Universal Stiff Arm Leg Attachment Kits

SKU	Item Master	Application	Stiff Arm Size	Weight
SAM-U Details & Purchase	ANT.14750	1" to 6" Round, 1" to 6" 60° Angles, 1" to 4" 90° Angles	2-3/8" OD	8.08 lbs

Adjustable Clamp Plate Assembly

SKU	Item Master	Application	Weight
PUCK Details & Purchase	ANT.54758	7/8" to 3-1/2" OD	6 lbs

Large Leg Adapter Kit for Tower Mounts & Reinforcement Kits

SKU	Item Master	Weight
TAM-LL Details & Purchase	ANT.16459	38.55 lbs

Large Leg Adapter FACE Kit

SKU	Item Master	Sectors	Face Pipes	Weight
FACE-LLEG Details & Purchase	BLD.68074	Varies	None	76 lbs

Pipe Mount Attachment Kit

SKU	Item Master	Description	Weight
FACE-PM Details & Purchase	ANT.54747	Pipe Mount Attachment Kit for Face Mount	51.13 lbs
FACE-PM496 Details	N/A	Pipe Mount Attachment Kit for Face Mount (Includes 4-1/2" x 96" Pipe)	146 lbs

Universal Cable Support Clamp Kit

SKU	Item Master	Leg Size	Weight
CSC-K Details	N/A	2-3/8” - 8-5/8” Round	54.36 lbs
CSC-U Details & Purchase	ANT.59925	2-3/8” - 8-5/8” Round	108.71 lbs
CSC-K Details & Purchase	N/A	2-3/8” - 8-5/8” Round	54.36 lbs
CSC-3010-MILS Details & Purchase	BLD.68079	2-3/8” - 8-5/8” Round	187 lbs

V-Clamp™ Series Tower Leg Hangers

SKU	Item Master	# of Tabs	# of Shackles	Weight
CHB-DCP2 Details & Purchase	ANT.59981	2	2	9 lbs
CHB-DCP4 Details & Purchase	ANT.59919	4	4	11 lbs

Wide V-Clamp™ Series Tower Leg Hangers

SKU	Item Master	# of Tabs	# of Shackles	Weight
CHB-DVC2 Details & Purchase	ANT.59962	2	2	18 lbs
CHB-DVC4 Details & Purchase	ANT.59956	4	4	19.5 lbs

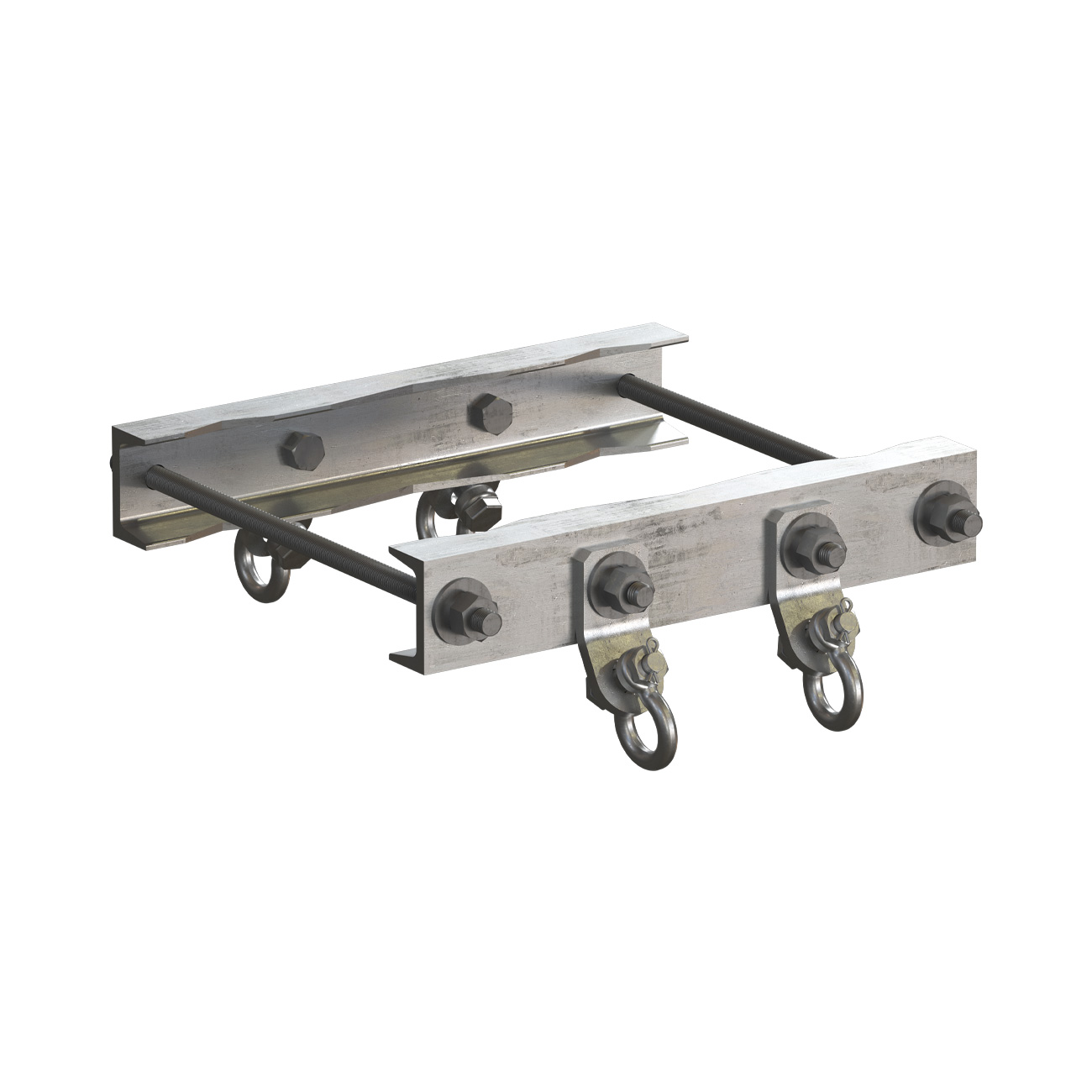

Tower Leg Cable Support Brackets

SKU	Item Master	Shackles	Weight
CHB-LL2 Details & Purchase	ANT.59975	2	26.97 lbs
CHB-LL4 Details & Purchase	ANT.59911	4	31.15 lbs

Guyed Tower Cable Face Support Kit

SKU	Item Master	Leg Size	Weight
SOCX3-3010-MILS Details & Purchase	BLD.68080	0.875” - 4.5” Round Legs	113 lbs

TMA Bracket

SKU	Item Master	Weight
PB-TMA-K Details & Purchase	ANT.47480	6.7 lbs

Microwave Ice Shields

SKU	Item Master	Antenna Diameter	Size	Weight
ISMD4 Details & Purchase	ANT.57347	4’	48” x 62”	325 lbs
ISMD6 Details & Purchase	MIC.11049	6’	72” x 62”	365 lbs

Monopole Sites

Fortress FlexMax™ Tri-Platform Mounts (NPNH Edition)

SKU	Item Master	Pole Diameter	Pole Circumference	Face Width	Weight
FX3P10-NPNH Details	ANT.59948	12” - 36”	37.7” - 113.0”	10'	1,837.66 lbs
FX3P12-NPNH Details	ANT.59932	12” - 44”	37.7” - 138.0”	12'	1,902.66 lbs
FX3P14-NPNH Details	ANT.59989	12” - 44”	37.7” - 138.0”	14'	2,103 lbs

Fortress FlexMax™ Quad-Platform Mounts (NPNH Edition)

SKU	Item Master	Pole Diameter	Pole Circumference	Face Width	Weight
FX4P10-NPNH Details	ANT.59996	12” - 36”	37.7” - 113.0”	10'	2,416.62 lbs
FX4P12-NPNH Details	ANT.59952	12” - 42”	37.7” - 132.0”	12'	2,504 lbs
FX4P14-NPNH Details	ANT.59979	12” - 60”	37.7” - 188.5”	14'	2,770 lbs

Fortress FlexMax™ Tri-Platform Mounts (No Grating)

SKU	Item Master	Pole Diameter	Pole Circumference	Face Width	Weight
FX3P10-NG-A3 Details	BLD.67276	14" - 36"	44" - 113"	11'	2,190 lbs
FX3P12-NG-A4 Details	BLD.67330	14" - 44"	44" - 138"	13'	2,514 lbs
FX3P14-NG-A4 Details	BLD.67298	14" - 44"	44" - 138"	15'	2,995 lbs
FX3P14-NG-A5 Details	BLD.67277	14" - 44"	44" - 138"	15'	3,220 lbs

Fortress FlexMax™ Quad-Platform Mounts (No Grating)

SKU	Item Master	Pole Diameter	Pole Circumference	Face Width	Weight
FX4P10-NG-A3 Details	BLD.67261	14" - 51"	44" - 160"	11'	2,920 lbs
FX4P12-NG-A4 Details	BLD.67250	14" - 65"	44" - 204"	13'	3,352 lbs
FX4P14-NG-A4 Details	BLD.67249	14" - 44"	44" - 138"	15'	3,994 lbs
FX4P14-NG-A5 Details	BLD.67258	14" - 44"	44" - 138"	15'	4,296 lbs

Fortress FlexMax™ Tri-Platform Mounts (With Pipes)

SKU	Item Master	Pole Diameter	Pole Circumference	Face Width	Weight
FX3P10-A3 Details	BLD.68073	14" - 36"	44" - 113"	11'	2,297 lbs
FX3P12-A4 Details	BLD.68154	14" - 44"	44" - 138"	13'	2,620 lbs
FX3P14-A4 Details	BLD.68153	14" - 44"	44" - 138"	15'	3,102 lbs
FX3P14-A5 Details	BLD.68152	14" - 44"	44" - 138"	15'	3,329 lbs

Fortress FlexMax™ Quad-Platform Mounts (With Pipes)

SKU	Item Master	Pole Diameter	Pole Circumference	Face Width	Weight
FX4P10-A3 Details	BLD.68151	14" - 51"	44" - 160"	11'	3,063 lbs
FX4P12-A4 Details	BLD.68150	14" - 65"	44" - 204"	13'	3,494 lbs
FX4P14-A4 Details	BLD.68149	14" - 44"	44" - 138"	15'	4,136 lbs
FX4P14-A5 Details	BLD.68148	14" - 44"	44" - 138"	15'	4,439 lbs

Fortress™ Side Arm RRU Mounting Kit

SKU	Item Master	Description	Weight
FP-BBPM Details & Purchase	ANT.59992	Fortress™ Side Arm RRU Mounting Kit	31.44 lbs

Platform RRU Mounting Kit

SKU	Item Master	Description	Weight
SAMAST-3 Details & Purchase	ANT.58930	3’ Platform RRU Mount	29 lbs
SAMAST-6 Details & Purchase	ANT.58830	6’ Platform RRU Mount	45 lbs

Low-Profile Platforms w/ Kickers (12 Antennas)

SKU	Item Master	Pole Diameter	Pole Circumference	Face Width	Mounting Pipes	Weight
RMQLP-4126-HK Details & Purchase	ANT.55229	12” - 38”	37.7” - 119.3”	15'	(12) 2-3/8” x 120”	2,600 lbs

RRU Ring Mount Kit

SKU	Item Master	Size Range	Weight
UGLM-DCP Details & Purchase	ANT.46630	10-1/2” - 28”	113 lbs

Compact Mount Kit

SKU	Item Master	Pole Diameter	Weight
UWS6-NP Details & Purchase	ANT.56837	10-1/2” - 28”	320 lbs

Monopole Dual-Level Tri-Sector T-Arm Kit

SKU	Item Master	Pole Diameter	Standoff Length	Mounting Pipes	Face	Weight
RMVD8-296-18 Details & Purchase	ANT.54511	12" - 45"	18"	(9) 2-3/8" x 96"	9'	1,881 lbs
RMVD12-NPNH Details	ANT.55970	12" - 45"	36"	None	13'	1,900 lbs
RMVD10-NPNH Details	ANT.55987	12" - 45"	36"	None	11'	1,810 lbs
RMVD8-2120-18 Details & Purchase	ANT.54512	12" - 45"	18"	(9) 2-3/8" x 120"	9'	1,937 lbs

Taper-Adjustable Chain Mount Kit

SKU	Item Master	Description	Standoff	Range	Weight
TCHM3 Details & Purchase	ANT.57321	Triple Sector	1’	6-1/2” - 36”	195 lbs

Monopole Mount Kit

SKU	Item Master	Pole Diameter	Description	Weight
6CHMT Details & Purchase	ANT.46628	17-1/2” - 56”	Six Sector	271 lbs

Single Sector Monopole T-Arms

SKU	Item Master	Pole Diameter	Standoff Length	Mounting Pipes	Face	Weight
T3D8-1NC-A3 Details	BLD.67280	Ring Mount Sold Separately	36"	3	9	587 lbs
T2D8-1NC-A3 Details	BLD.68155	Ring Mount Sold Separately	24"	3	9	555 lbs
T2D10-1NC-A3 Details	BLD.68135	Ring Mount Sold Separately	24"	3	11	588 lbs
T2D12-1NC-A4 Details	BLD.68134	Ring Mount Sold Separately	24"	4	13	792 lbs
T3D10-1NC-A3 Details	BLD.67257	Ring Mount Sold Separately	36"	3	11	627 lbs
T3D12-1NC-A4 Details	BLD.67317	Ring Mount Sold Separately	36"	4	13	825 lbs

Triple Sector Monopole T-Arms (With Pipe)

SKU	Item Master	Pole Diameter	Standoff Length	Mounting Pipes	Face	Weight
T3D8-3-A3 Details	BLD.68226	12” – 45”	36"	3	9	2,431 lbs
T3D10-3-A3 Details	BLD.68225	12” – 45”	36"	3	11	2,532 lbs
T3D12-3-A4 Details	BLD.68224	12” – 45”	36"	4	13	3,145 lbs
T2D8-3-A3 Details	N/A	12” – 45”	24"	3	9	2,334 lbs
T2D10-3-A3 Details	N/A	12” – 45”	24"	3	11	2,435 lbs
T2D12-3-A4 Details	N/A	12” – 45”	24"	4	13	3,048 lbs

Quad Sector Monopole T-Arms (With Pipe)

SKU	Item Master	Pole Diameter	Standoff Length	Mounting Pipes	Face	Weight
T3D8-4-A3 Details	BLD.68227	12” – 60”	36"	3	9	3,242 lbs

Fortress™ Tri-Platform Mounts

SKU	Item Master	Pole Diameter	Pole Circumference	Face Width	Weight
F3P-12W Details & Purchase	ANT.56698	12” - 45”	37.7” – 141.3”	12’ - 6”	2,122 lbs

Fortress™ Quad-Platform Mounts

SKU	Item Master	Pole Diameter	Pole Circumference	Face Width	Weight
F4P-12W Details & Purchase	ANT.56874	12” - 60”	37.7” - 188.4”	12’ - 6”	2,777 lbs

Universal Platform Support Rail Kit

SKU	Item Master	Face Width	Support Rail Pipe Size	Antenna Mounting Pipe Size	Weight
HRK12 Details & Purchase	ANT.51653	13'	2-3/8”	2-3/8”	227.55 lbs
HRK14 Details & Purchase	ANT.51647	15'	2-3/8”	2-3/8”	267.9 lbs
HRK12-HD Details & Purchase	ANT.51651	13'	2-3/8”	2-3/8” or 2-7/8”	413 lbs
HRK14-HD Details & Purchase	ANT.51656	15'	2-3/8”	2-3/8” or 2-7/8”	448 lbs
HRK12-3HD Details & Purchase	ANT.51649	13'	2-7/8”	2-3/8” or 2-7/8”	503 lbs
HRK14-3HD Details & Purchase	ANT.51657	15'	2-7/8”	2-3/8” or 2-7/8”	525 lbs

Horizontal Support Rail Kit for Fortress™ Tri-Platform Mounts

SKU	Item Master	Face Width	Support Rail Pipe Size	Antenna Mounting Pipe Size	Weight
F3P-HRK10 Details & Purchase	CEQ.53336	11'	2-3/8”	2-3/8” or 2-7/8”	391 lbs
F3P-HRK12 Details & Purchase	CEQ.53318	13'	2-3/8”	2-3/8” or 2-7/8”	405 lbs
F3P-HRK14 Details & Purchase	ANT.59907	15'	2-3/8”	2-3/8” or 2-7/8”	415 lbs

Horizontal Support Rail Kit for Fortress™ Quad-Platform Mounts

SKU	Item Master	Face Width	Support Rail Pipe Size	Antenna Mounting Pipe Size	Weight
F4P-HRK10 Details & Purchase	ANT.59943	11'	2-3/8”	2-3/8” or 2-7/8”	480 lbs
F4P-HRK12 Details & Purchase	CEQ.53327	13'	2-3/8”	2-3/8” or 2-7/8”	507 lbs
F4P-HRK14 Details & Purchase	ANT.59947	15'	2-3/8”	2-3/8” or 2-7/8”	550 lbs

Horizontal Support Rail Kit for Low-Profile Co-Location Platform

SKU	Item Master	Description	Pipes	Weight
HRK12-U Details & Purchase	ANT.51648	Support Rail Kit for 13' Face	2-3/8” and 2-7/8” Antenna Pipes	303 lbs
HRK14-U Details & Purchase	ANT.51654	Support Rail Kit for 15' Face	2-3/8” and 2-7/8” Antenna Pipes	333 lbs

Horizontal Support Rail Reinforcement Kit

SKU	Item Master	Angle Size	Weight
HSRK-35 Details & Purchase	ANT.51655	L 3” x 3” x 1/4" x 96"	141.05 lbs

Reinforcement Kit for Fortress™ Platforms

SKU	Item Master	Pole Diameter	Horizontal Connection	Angle Size	Weight
F4P-PRK Details & Purchase	ANT.59990	12" to 60"	1/2" Flange	2L 2-1/2” x 2-1/2” x 3/16” x 52	633 lbs
F3P-PRK Details & Purchase	ANT.59929	12" to 45"	1/2" Flange	2L 2-1/2” x 2-1/2” x 3/16” x 52	470 lbs

Reinforcement Kit for Platforms or T-Arms

SKU	Item Master	Description	Pole Diameter	Horizontal Connection	Angle Size	Weight
PRK-1245 Details & Purchase	ANT.16462	Reinforcement Kit	12" to 45"	4” x 4” Max	2L 2-1/2” x 2-1/2” x 3/16” x 52”	465 lbs
PRK-1245L Details & Purchase	ANT.16463	Long Reinforcement Kit	12" to 45"	4” x 4” Max	2L 2-1/2” x 2-1/2” x 3/16” x 84”	520 lbs
PRK-NA Details & Purchase	ANT.16464	Attachment Hardware Only	12" to 45"	4” x 4” Max	Order Separately	379 lbs

Quad Reinforcement Kit for Platforms or T-Arms

SKU	Item Master	Description	Pole Diameter	Horizontal Connection	Angle Size	Weight
PQ-1245 Details & Purchase	ANT.16465	Reinforcement Kit	12" to 60"	4” x 4” Max	2L 2-1/2” x 2-1/2” x 3/16” x 52"	665 lbs
PQ-1245L Details & Purchase	ANT.16466	Long Reinforcement Kit	12" to 60"	4” x 4” Max	2L 2-1/2” x 2-1/2” x 3/16” x 84"	735 lbs

V-Style Reinforcement Kit (Angle)

SKU	Item Master	Description	Angle Size	Weight
PRK-SFS Details & Purchase	ANT.16817	Support Rail Reinforcement Kit	L 2-1/2” x 2-1/2” x 3/16” x 52-1/2”	588 lbs
PRK-SFS-L Details & Purchase	ANT.16818	Long Angle Support Rail Reinforcement Kit	L 2-1/2” x 2-1/2” x 3/16” x 72”	642 lbs

Cable Platform Reinforcement Kit

SKU	Item Master	Platform Style	Pole Diameter	Horizontal Connection	Weight
CRK-DC3 Details & Purchase	ANT.46145	Fortress™ F3P	12” – 45”	4” x 4” Max	350 lbs
CRK-DC4 Details & Purchase	ANT.46135	Fortress™ F4P	12” – 60”	4” x 4” Max	409 lbs
CRK-UC3 Details & Purchase	ANT.51652	Universal	12” – 45”	4” x 4” Max	415 lbs
CRK-UC4 Details & Purchase	ANT.51658	Universal	12” – 60”	4” x 4” Max	497 lbs

Cable Platform Reinforcement Kit (FlexMax™ Series)

SKU	Item Master	Platform Style	Pole Diameter	Horizontal Connection	Weight
CRK-FLX3 Details	BLD.68077	Fortress FlexMax™ FX3P	12” – 45”	6” x 6” Max	362.94 lbs
CRK-FLX4 Details	BLD.68076	Fortress FlexMax™ FX4P	12” – 60”	4” x 4” Max	483.89 lbs

FLX Series™ Ring Mounts

SKU	Item Master	Sectors	Pole Sizes	Weight
FLX4-SDSP Details & Purchase	BLD.68369	Four	12" to 15"	69.36 lbs
FLX3-SDSP Details & Purchase	BLD.68368	Three	7-5/8" to 14"	52.02 lbs
FLX3-SD Details & Purchase	ANT.59964	3-Sided	14" - 36"	280.08 lbs
FLX3-HD Details & Purchase	ANT.59987	3-Sided	12" - 44"	374.44 lbs
FLX4-SD Details & Purchase	ANT.59985	4-Sided	15" - 60"	373.44 lbs
FLX4-HD Details & Purchase	ANT.59986	4-Sided	12" - 60"	499.25 lbs

FLX Series™ Large Pole Adapter Kit

SKU	Item Master	Pole Size	Weight
FLX-ADK Details & Purchase	ANT.59963	45” - 60”	96 lbs

Universal Ring Mount Kit

SKU	Item Master	Description	Pole Sizes	Weight
LWRM Details & Purchase	MIC.11440	Tri-Monopole Collar	12" - 45"	250 lbs
RM-ADK Details & Purchase	ANT.55979	Large Pole Adapter	45" - 60"	102 lbs

Lightweight Ring Mount Kit

SKU	Item Master	Pole Sizes	Weight
LP-6 Details & Purchase	ANT.56836	6-5/8" - 10-1/2"	34 lbs

Direct Frame Connection Kit

SKU	Item Master	Description	Weight
MDFCC Details & Purchase	ANT.55986	Monopole Direct Frame Connection Kit	634 lbs

Monopole Direct Frame Connection Kit

SKU	Item Master	Description	Weight
MDFCC-FLX3 Details & Purchase	BLD.68146	Monopole Direct Frame Connection Kit including FlexMax™	668 lbs
MDFCC-FLX4 Details & Purchase	BLD.68145	Monopole Direct Frame Connection Kit including FlexMax™	890 lbs

Sector Frame Attachment Assembly

SKU	Item Master	Description	Pole Sizes	Weight
MSFAA-Q Details & Purchase	ANT.58926	Sector Frame Attachment Assembly (4 Sector)	12” - 60”	1,105 lbs
MSFAA Details & Purchase	ANT.55965	Sector Frame Attachment Assembly (3 Sector)	12” - 45”	788.53 lbs

Monopole Sector Frame Attachment Assembly

SKU	Item Master	Description	Pole Sizes	Weight
MSFAA-FLX3 Details & Purchase	BLD.68142	Sector Frame Attachment Assembly (3 Sector) for FlexMax™ Collar	14” - 45”	937.29 lbs
MSFAA-FLX4 Details & Purchase	BLD.68141	Sector Frame Attachment Assembly (4 Sector) for FlexMax™ Collar	15” - 60”	1,249.72 lbs
MSFAA-24-FLX3 Details & Purchase	BLD.68144	Sector Frame Attachment Assembly (3 Sector) for FlexMax™ Collar with 24" Stand-Off	14" - 36"	1,237 lbs
MSFAA-24-FLX4 Details & Purchase	BLD.68143	Sector Frame Attachment Assembly (4 Sector) for FlexMax™ Collar with 24" Stand-Off	15” - 60”	1,648 lbs

Standoff Arm Kit for Single Antennas

SKU	Item Master	Description	Weight
MM01 Details & Purchase	ANT.55231	8” Support Arm	37 lbs
MM02 Details & Purchase	ANT.55230	24” Support Arm	51 lbs
MM03 Details & Purchase	ANT.55232	36” Support Arm	62 lbs

PHH Series™ Port Hole Hanger

SKU	Item Master	# of Shackles	Weight
PHH-AL Details & Purchase	ANT.59922	0	4.4 lbs
PHH-AL-SP14 Details & Purchase	ANT.59954	2	5.92 lbs

Cable Support Collar

SKU	Item Master	Sectors	Diameter	Weight
CW-2 Details & Purchase	BLD.68372	2-Sided	6-5/8" - 15" Round	41.86 lbs
CW-4 Details & Purchase	BLD.68370	4-Sided	12" - 60" Round	96.27 lbs
CW-3 Details & Purchase	BLD.68371	3-Sided	6-5/8" - 36" Round	76 lbs
LPC2 Details & Purchase	BLD.68378	2-Sided	6-5/8" - 15" Round	42 lbs
LPC3 Details & Purchase	BLD.68377	3-Sided	6-5/8" - 36" Round	73 lbs
LPC4 Details & Purchase	BLD.68376	4-Sided	12" - 60" Round	96.27 lbs

Cable Support Collar Overhang

SKU	Item Master	Sectors	Diameter	Weight
CW-2T Details & Purchase	BLD.68375	2-Sided	6-5/8" - 15" Round	107.67 lbs
CW-3T Details & Purchase	BLD.68374	3-Sided	6-5/8" - 36" Round	136 lbs
CW-4T Details & Purchase	BLD.68373	4-Sided	12" - 60" Round	169.09 lbs

Heavy-Duty Ring Mount Kit

SKU	Item Master	Pole Sizes	Weight
RM3-LPK Details & Purchase	ANT.55963	45” - 60”	100 lbs

Rooftop Sites

Ballast Trays

SKU	Item Master	Tray Dimensions	Mats Required	Weight
TA8-S Details & Purchase	ANT.56780	18” x 96”	2	68.86 lbs

Non-Penetrating Rooftop Pipe Frames

SKU	Item Master	Face Width	Mounting Pipes	Footprint	Mats Required	Weight
RTP10 Details & Purchase	ANT.52364	10'-6''	No Pipes	92'' x 126''	6	535 lbs
RTP14 Details & Purchase	ANT.52365	14'-6''	No Pipes	92'' x 174''	12	800 lbs

Non-Penetrating Rooftop Frames with RRU Mounts

SKU	Item Master	Face Width	Mounting Pipes	Footprint	Mats Required	Weight
RTP10-3RRU Details & Purchase	CEQ.53343	10’-6”	(4) 2-3/8” x 174”	92” x 126”	6	1,049 lbs
RTP12-3RRU Details & Purchase	CEQ.47545	12’-6”	(4) 2-3/8” x 174”	92” x 150”	8	1,108 lbs
RTP14-3RRU Details & Purchase	CEQ.53333	14’-6”	(4) 2-3/8” x 174”	92” x 174”	12	1,375 lbs

Wall Mounts & Chimney Mounts

Square Chimney Mount Kits

SKU	Item Master	Chimney Face	Weight
SCM34 Details & Purchase	ANT.56476	3’ to 4’	488 lbs
SCM48 Details & Purchase	ANT.56475	4’ to 8’	568 lbs

Ice Bridges & Equipment Racks

24″ Grip-Strut Ice Bridge Kits With Triple-Tee Trapeze

SKU	Item Master	Size	Poles	Trapeze	# of Runs	Weight
IB24D-T3 Details & Purchase	ANT.59448	24” x 10’, 12 Gauge	3-1/2” x 13’-4” Burial	Triple Tee	24	443 lbs
IB24D-216T3 Details & Purchase	ANT.59450	24” x 10’, 12 Gauge	3-1/2” x 18’ Burial	Triple Tee	24	515 lbs
IB24B-T3 Details & Purchase	ANT.59457	24” x 10’, 12 Gauge	3-1/2” x 10’-6” Base Shoe	Triple Tee	24	429 lbs

Pipe Columns

SKU	Item Master	Type	Size	Weight
P3180 Details & Purchase	ANT.56778	Direct Burial	3-1/2" x 15'-0"	110 lbs

Hardware

Pipe-to-Pipe Clamp Sets

SKU	Item Master	Pipe Size	Clamp Thickness	Threaded Rod	Kit Qty.	Weight
SP1-MSK3 Details	ANT.59984	1-1/2" - 3-1/2"	1/2"	1/2" x 10"	Kit of 2	28 lbs
ACP10K Details & Purchase	ANT.59936	1-1/2" - 3-1/2"	1/4"	1/2" x 10"	Kit of 2	8.15 lbs
SCP10K Details & Purchase	ANT.59984	1-1/2" - 3-1/2"	1/2"	1/2" x 10"	Kit of 2	11.9 lbs
DCP12K Details & Purchase	BLD.68075	1-1/2" - 5"	1/2"	5/8" x 12"	Kit of 2	21.34 lbs
DCP18K Details & Purchase	ANT.59951	1-1/2" - 5"	1/2"	5/8" x 18"	Kit of 2	25.25 lbs

Welded Pipe-to-Pipe Clamp Sets

SKU	Item Master	Pipe Size	Clamp Thickness	Threaded Rod	Kit Qty.	Weight
SCP10W Details & Purchase	ANT.59912	1-1/2" - 3-1/2"	1/2"	1/2" x 10"	Kit of 2	11.32 lbs

Universal Standoff Pipe-To-Pipe Kits

SKU	Item Master	Standoff Distance	Round Member Size	Weight
SOPTP6-U Details & Purchase	ANT.59993	6"	2.375'' - 4.5'' O.D.	28 lbs
SOPTP12-U Details & Purchase	ANT.59978	12"	2.375'' - 4.5'' O.D.	33 lbs
SOPTP18-U Details & Purchase	BLD.68137	18"	2.375'' - 4.5'' O.D.	38 lbs
SOPTP24-U Details & Purchase	ANT.59971	24"	2.375'' - 4.5'' O.D.	53 lbs

Standoff Crossover Kit

SKU	Item Master	Standoff Distance	Round Member Size	Weight
SOCX3-U Details & Purchase	ANT.58891	3''	2.375'' - 4.5'' O.D.	25.47 lbs
SOCX6-U Details & Purchase	ANT.58885	6''	2.375'' - 4.5'' O.D.	27.81 lbs
SOCX9-U Details & Purchase	ANT.58878	9''	2.375'' - 4.5'' O.D.	30 lbs
SOCX12-U Details & Purchase	ANT.58861	12''	2.375'' - 4.5'' O.D.	33 lbs
SOCX18-U Details & Purchase	BLD.68139	18"	2.375'' - 4.5'' O.D.	38 lbs
SOCX24-U Details & Purchase	BLD.68138	24"	2.375'' - 4.5'' O.D.	42 lbs

Crossover Plate Kits

SKU	Item Master	Smaller Pipe Size	Larger Pipe Size	Thickness	Qty.	Weight
SP1-MSK1 Details	ANT.55975	2-7/8"	2-7/8"	3/8"	1 Plate, 4 U-Bolts & Hardware	12.5 lbs
SCX2-K Details & Purchase	CEQ.53317	2-3/8"	2-7/8"	3/8"	1 Plate, 4 U-Bolts & Hardware	7.65 lbs
SCX23-K Details & Purchase	ANT.55975	2-7/8"	2-7/8"	3/8"	1 Plate, 4 U-Bolts & Hardware	8 lbs
SCX45-K Details & Purchase	ANT.59941	2-7/8"	3-1/2"	3/8"	1 Plate, 4 U-Bolts & Hardware	15.65 lbs

Universal Crossover Plate Kits

SKU	Item Master	Smaller Pipe Size	Larger Pipe Size	Thickness (Hardware Size)	Qty.	Weight
SCX7-U Details & Purchase	N/A	1-1/2" - 3-1/2"	1-1/2" - 4-1/2"	1/2" (1/2")	1 Plate, 4 V-Clamps & Hardware	15.74 lbs

Crossover Plate Kits for Square Tube/Pipe

SKU	Item Master	Pipe Size	Square Tube Size	Thickness	Quantity	Weight
STCX43-K Details & Purchase	ANT.59961	2-3/8"	Up to 3"	3/8"	1 Plate, 2 U-Bolts, 2 Bolts & Backing Plates	12 lbs
STCX45-K Details & Purchase	ANT.59972	2-7/8"	Up to 3"	3/8"	1 Plate, 2 U-Bolts, 2 Bolts & Backing Plates	12 lbs
SQCX4-K Details & Purchase	ANT.59908	2-3/8" or 2-7/8"	4"	3/8"	1 Plate, 4 U-Bolts, 2 Square U-Bolts & Hardware	11.35 lbs

Pipe/Angle Crossover Plate Kits

SKU	Item Master	Angle Size	Pipe Size	Thickness	Qty.	Weight
ACX238-K Details & Purchase	ANT.59973	3" x 3"	2-3/8"	3/8"	1 Plate, 4 U-Bolts & Hardware	9.67 lbs
ACX278-K Details & Purchase	ANT.59933	3" x 3"	2-7/8"	3/8"	1 Plate, 4 U-Bolts & Hardware	9.82 lbs

Handrail Antenna Pipe Mounting Bracket Kits

SKU	Item Master	Mounts To	Weight
HMB-AU Details & Purchase	ANT.59241	Angles 1” x 1” to 4” x 4” at 1/8" - 1/2" Thick	22.5 lbs

Pipe Cross Support Plates

SKU	Item Master	Smaller Pipe Size	Larger Pipe Size	Contents	Weight
FCX45-U Details & Purchase	ANT.56006	2-3/8" - 4-1/2"	2-3/8" - 4-1/2"	1 Plate, 4 V-Clamps & Hardware	25.62 lbs
SP219 Details & Purchase	ANT.55974	2-3/8"	3-1/2"	1 Bracket, 4 U-Bolts	11.3 lbs
SP219-H Details & Purchase	ANT.55968	2-7/8"	3-1/2"	1 Bracket, 4 U-Bolts	13 lbs

Pipe/Square Tube Cross Support Plate

SKU	Item Master	Smaller Pipe Size/Square Tube Size	Larger Pipe Size	Contents	Weight
SP216-CK Details & Purchase	ANT.55990	1-1/2" to 3-1/2"	4-1/2"	1 Bracket, 1 Crossover Plate, 12 Bolts, 4 V-Clamps	45 lbs

V-Clamp Crossover

SKU	Item Master	Pipe Size	Plate Thickness	Standoff Distance	Weight
VCX1-2K Details & Purchase	ANT.58879	1.9" - 2.375"	3/8”	2-3/4”	6 lbs

Gator Series™ Crossover

SKU	Item Master	Smaller Pipe Size	Larger Pipe Size	Weight
G8R-CX30-K Details	BLD.68147	2-7/8"	3-1/2"	13 lbs

HD Series™ Crossover Kits

SKU	Item Master	Smaller Pipe Size	Larger Pipe Size	Weight
SCX3-FR-K Details & Purchase	ANT.56449	2-3/8"	2-7/8"	14 lbs

Back-to-Back Pipe Mount Kits

SKU	Item Master	Pipe Sizes	Stand-Off Arms	Weight
BBPM-K1 Details & Purchase	ANT.58963	2-3/8"	3-1/2" - 4-1/2"	18 lbs
BBPM-K2 Details & Purchase	ANT.58921	2-7/8"	3-1/2" - 4-1/2"	18 lbs
BBPM-K3 Details & Purchase	ANT.56902	2-3/8"	3-1/2" - 6"	20 lbs
BBPM-U Details & Purchase	ANT.58819	2-3/8" - 4-1/2"	2-3/8" - 4-1/2"	25 lbs

Bulk Pipe (Schedule 40 & 80)

SKU	Item Master	Outer Diameter (OD) (in)	Length (in)	Schedule	Weight
P3174 Details	ANT.56778	3-1/2	180	40	110 lbs
P3126 Details	ANT.55982	3-1/2	126	40	80 lbs
P30174 Details	ANT.59983	2-7/8	174	40	78 lbs
P30150 Details	ANT.59965	2-7/8	150	40	75 lbs
P2150 Details	N/A	2-3/8	150	40	42.4 lbs
P296 Details & Purchase	ANT.55983	2-3/8	96	40	27.8 lbs
P2120 Details & Purchase	ANT.55993	2-3/8	120	40	37 lbs
P2126 Details	N/A	2-3/8	126	40	38 lbs
P2132 Details & Purchase	ANT.59977	2-3/8	132	40	40 lbs
P2156 Details & Purchase	ANT.59968	2-3/8	156	40	43 lbs
P2180 Details & Purchase	ANT.59944	2-3/8	180	40	55 lbs
P3096 Details & Purchase	ANT.55985	2-7/8	96	40	49 lbs
P30108 Details & Purchase	BLD.68140	2-7/8	108	40	55 lbs
P30120 Details & Purchase	ANT.16008	2-7/8	120	40	60 lbs
P30132 Details	ANT.59966	2-7/8"	132"	40	70 lbs
P30156 Details & Purchase	ANT.59965	2-7/8	156	40	78 lbs
P30180 Details & Purchase	ANT.59983	2-7/8	180	40	90 lbs
P30252 Details & Purchase	ANT.56782	2-7/8	252	40	122 lbs
P396 Details & Purchase	ANT.55967	3-1/2	96	40	65 lbs
P3120 Details & Purchase	ANT.55982	3-1/2	120	40	80 lbs
P496 Details & Purchase	BLD.67938	4-1/2	96	40	87 lbs

U-Bolts

SKU	Item Master	Diameter (D)	Width (W)	Length (L)	Thread (T)	Qty.	Weight
UB1212 Details & Purchase	BLD.68156	1/2"	2-1/2"	4-1/2"	2"	Each	0.65 lbs
UB1300 Details & Purchase	BLD.68157	1/2"	3"	5"	2"	Each	0.7 lbs

Climb Systems

HALO Maintenance Tie-Off Anchor

SKU	Item Master	Application	Weight
HALO40 Details & Purchase	ANT.55976	12'' - 40'' Poles	63 lbs
