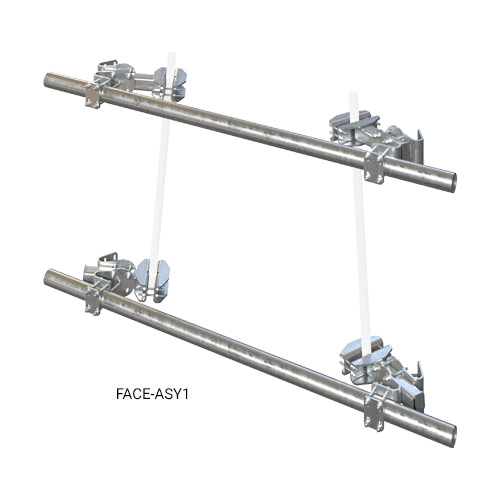

Universal Face Pipe Mount Assembly
These universal mounts are designed for even the most difficult face mount applications.
- Easily adjustable taper up to 8º (based on 60” spacing of brackets)
- Work with face pipes 2-7/8”, 3-1/2”, or 4-1/2” OD
- Attach to 1-1/2” to 9-1/2” round members or 3” to 6” angles
- Add FACE-LLEG for larger leg sizes (round legs 9-1/2” to 16” dia, 90º angle legs 6” to 11”, or truss legs up to 12”)
- Four FACE-LLEG required for FACE-ASY1
