Outside 90° Vertical Risers

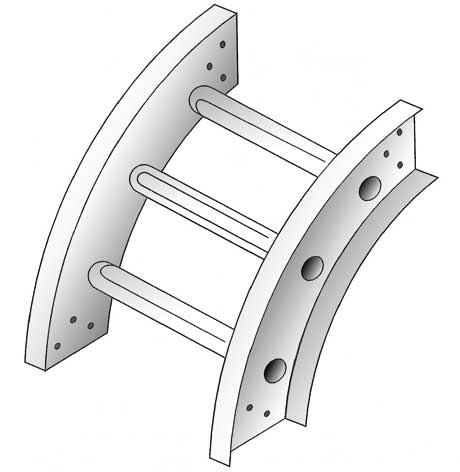

This riser provides a 90° outside-radius transition between horizontal and vertical cable tray runs, maintaining continuous cable support through the change in elevation.
- Extruded aluminum alloys 6063 and 5052 construction
- Ladder-style design with two side rails
- 1.13" wide tubular rungs, arc-welded on both sides

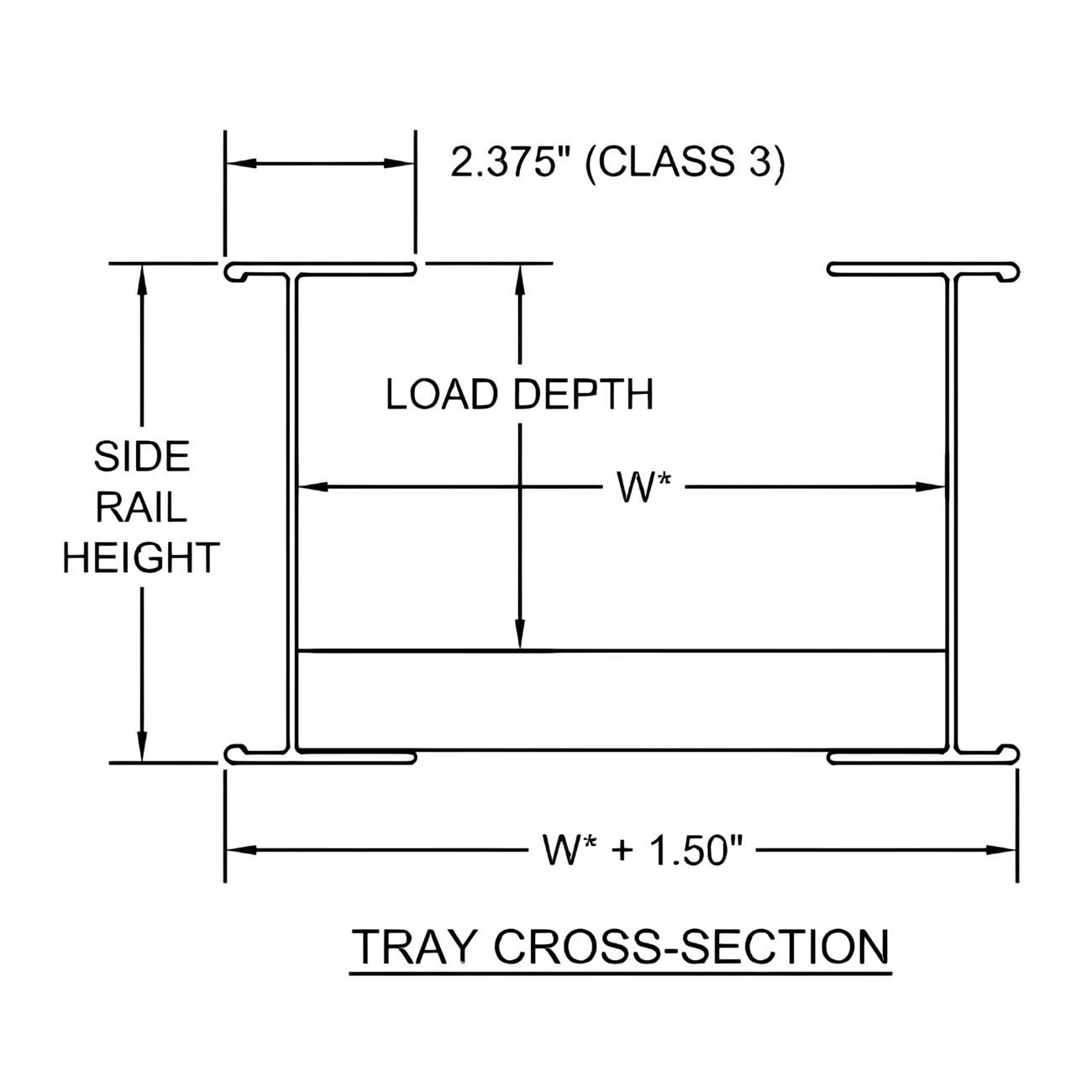

- Class 3 fitting with 2.375" flanges

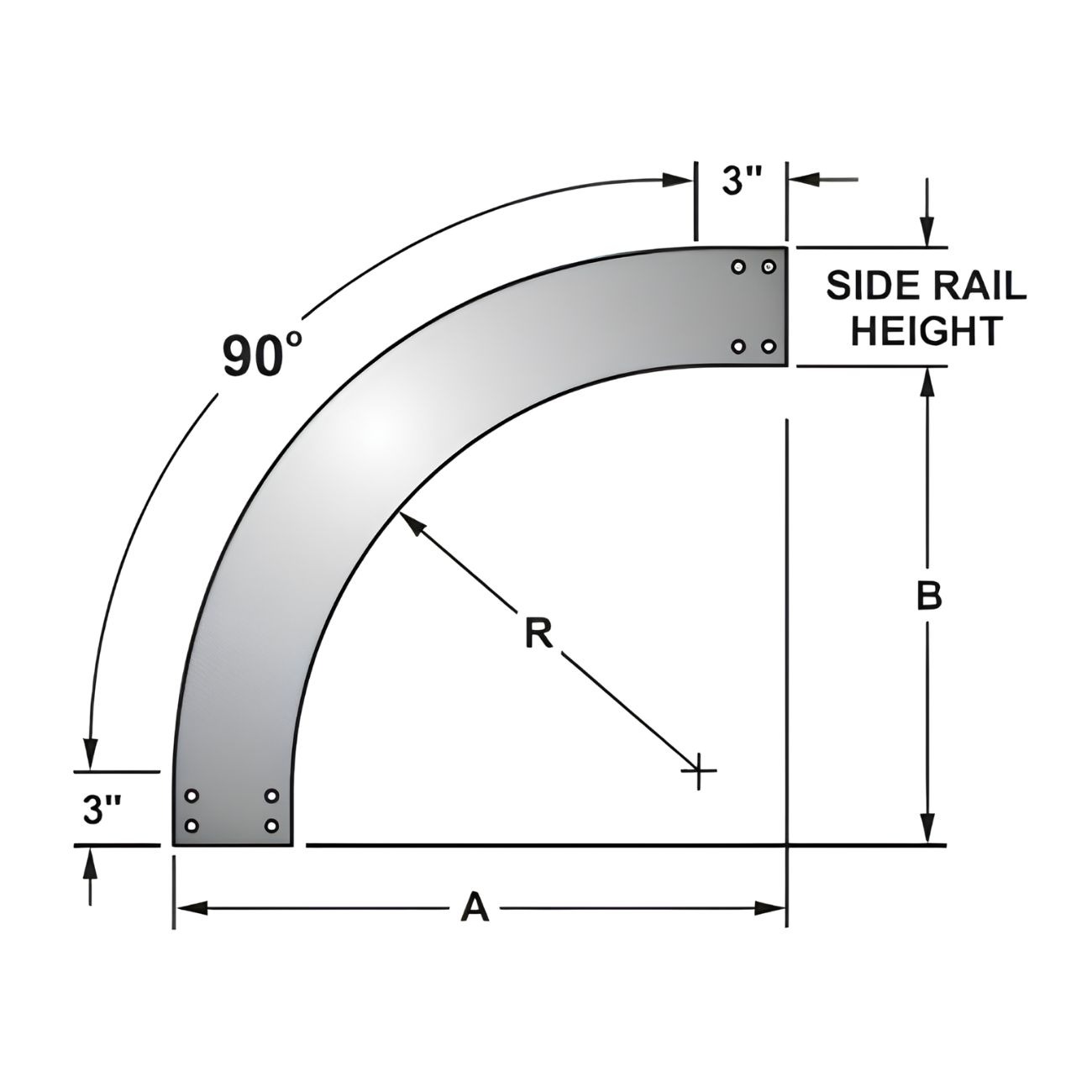

- 3" flat side rail tangents beyond the curvature
- Each section includes a pair of splice plates with fastening hardware
- Splice resistance less than 0.00033 ohms
- UL Classified as an equipment grounding conductor per NEC 392
- Compliant with NEMA VE1, CSA C22.2 No. 126, and NEC Article 392
- Matching covers listed below
