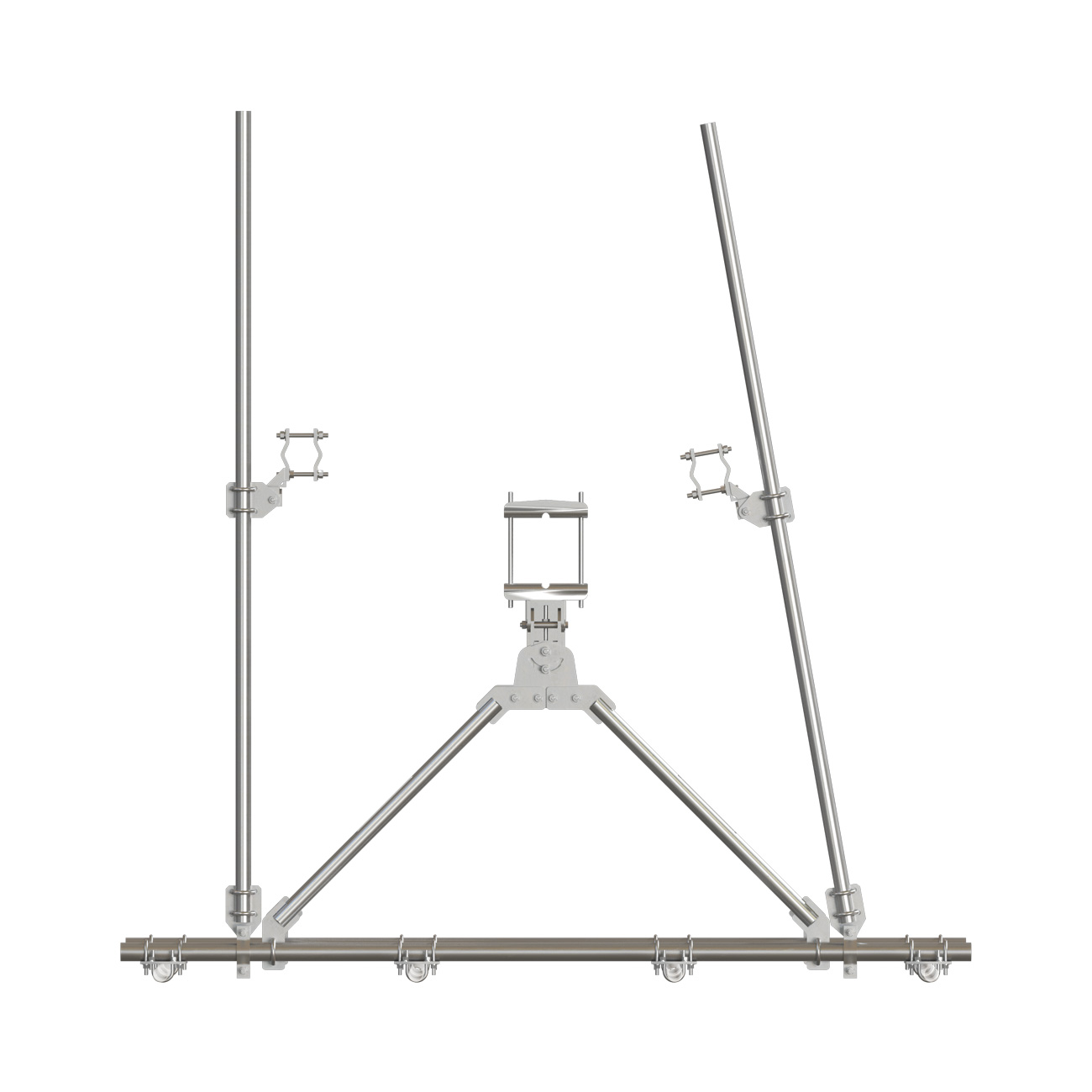

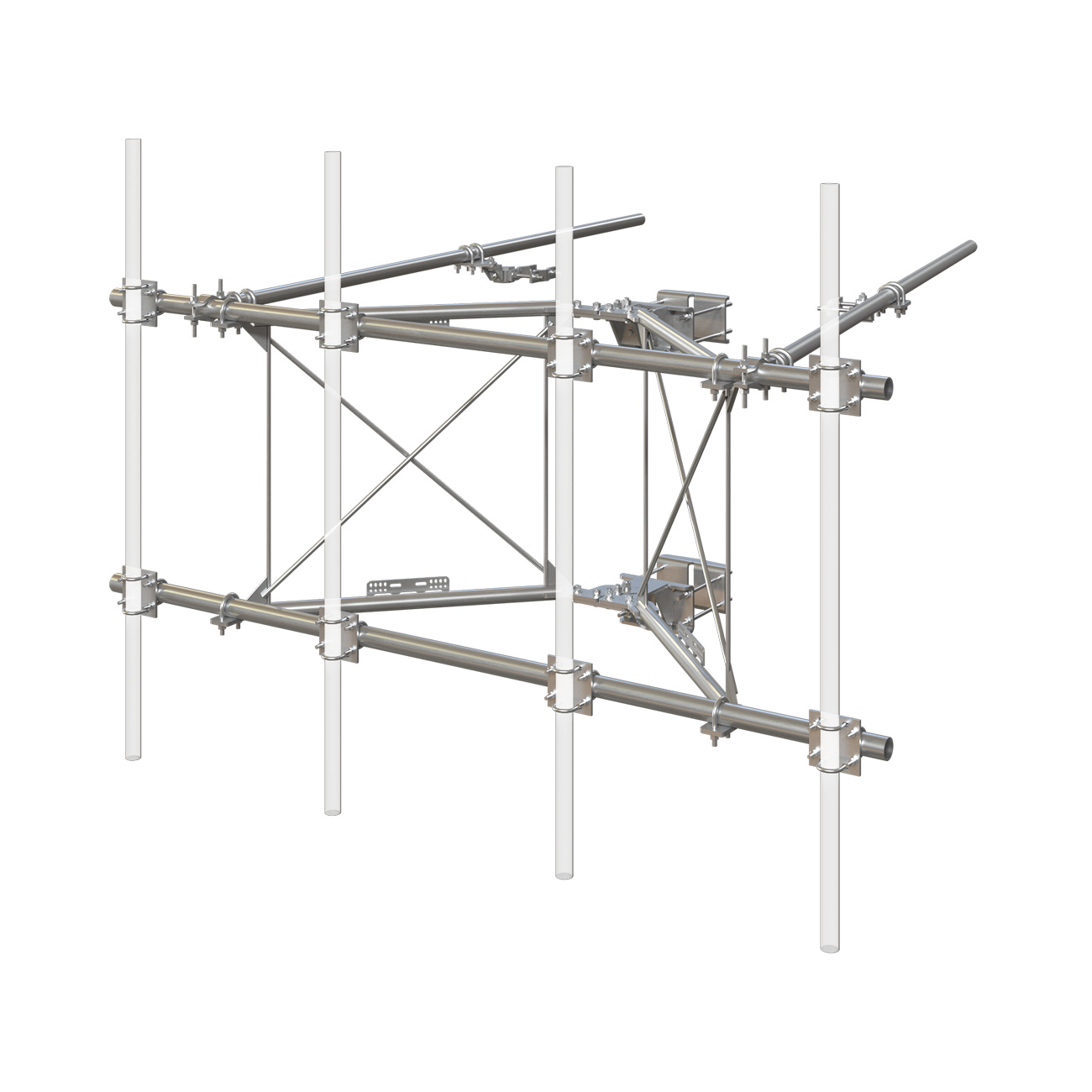

XD Series™ V-Frames
Our XD Series™ V-frames are the strongest sector frames we’ve ever built, offering enhanced RF capabilities and featuring our innovative RRU QuickPlate™ pipe mount.
- Features BCAM™ Taper Adjustment System
- Features our Quick-Plate™ for easy grounding and addition of RRU mounting pipes or unistrut
- Features improved 5'+ standoff with greater capacity
- Round-member face offers lower wind resistance
- Includes stiff arm(s)
- Includes hardware to mount 2-3/8" and 2-7/8" antenna mounting pipes (Pipes sold separately)
- Frames rotate for easy azimuth adjustment (+/- 60 degrees)
- Supports 2-3/8" or 2-7/8" antenna mounting pipes (pipes sold separately) with up to 14' separation (frame dependent)
- When ordering V-Frames for use with round chimney mounts or monopole direct frame connection kits add "-NLB" to the part number to get the frame without the leg bracket hardware
- Contact us for load and engineering data
