90° Horizontal Bends
This bend provides a 90° change of direction when connecting straight cable tray sections, maintaining continuous cable support and routing through the turn.
- Extruded aluminum alloy 6063 construction
- Ladder-style design with two side rails
- 1.13" wide tubular rungs, arc-welded on both sides
- Class 3 fitting with 2.375" flanges
- 3" flat side rail tangents beyond the curvature
- Each section includes splice plates and fastening hardware
- Splice resistance less than 0.00033 ohms
- UL Classified as an equipment grounding conductor per NEC 392
- Compliant with NEMA VE1, CSA C22.2 No. 126, and NEC Article 392
- Matching covers listed below

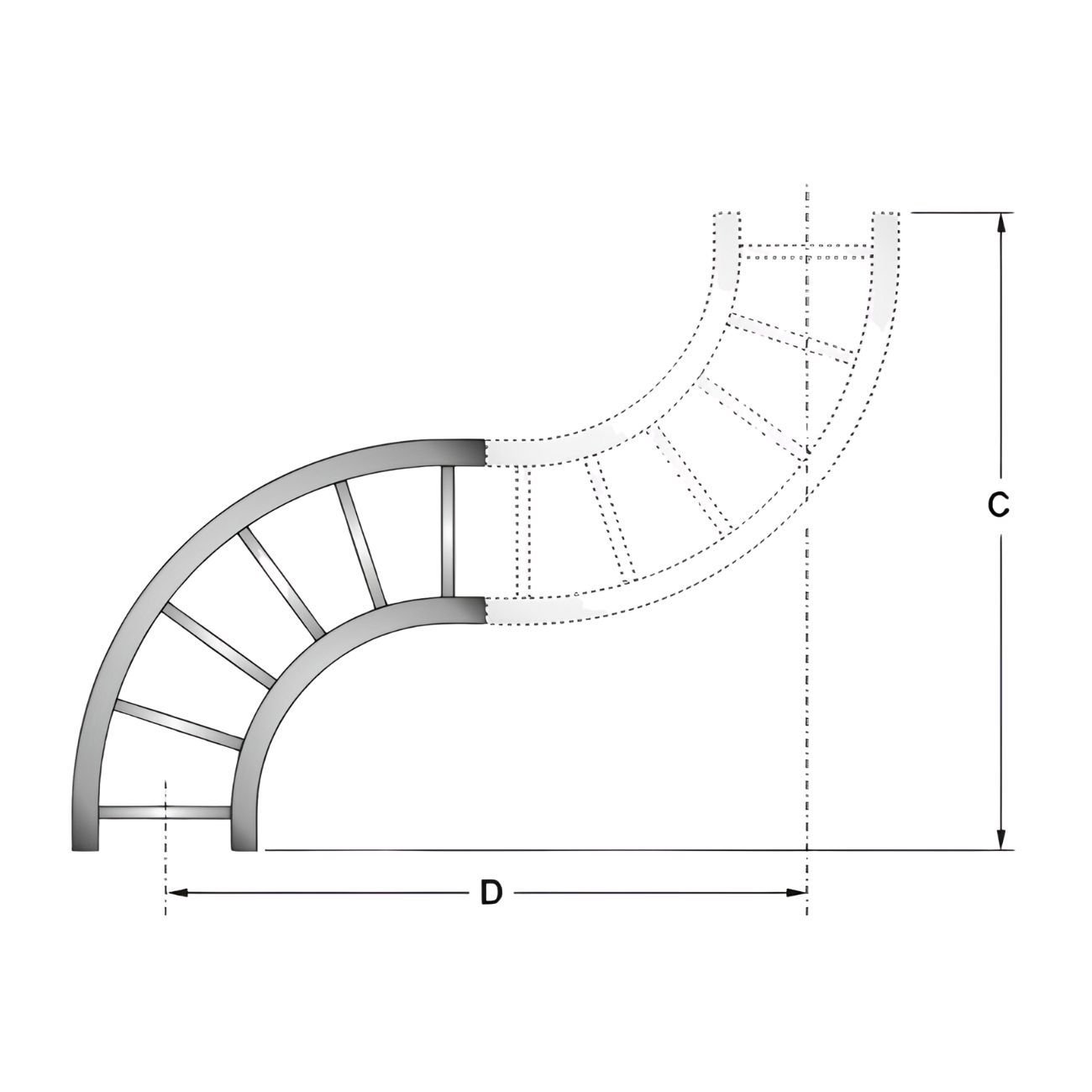

| SKU | Width (W) | Type | Pairs With | Bend Radius (R) | Footprint (AxB) | Offset (CxD) | Weight | Price |
|---|---|---|---|---|---|---|---|---|
| 6” | Tray | LT-V90-06-A | 12" at 90° | 21" x 21" | 36" x 36" | 4 lbs | $177.00 | |
| 6” | Cover | LT-C90-06-4D | - | - | - | 1.5 lbs | $98.00 | |
| 9” | Tray | LT-V90-09-A | 12" at 90° | 24" x 24" | 39" x 39" | 5 lbs | $183.50 | |
| 9” | Cover | LT-C90-09-4D | - | - | - | 2 lbs | $112.00 | |
| 12” | Tray | LT-V90-12-A | 12" at 90° | 27" x 27" | 42" x 42" | 6 lbs | $190.00 | |
| 12” | Cover | LT-C90-12-4D | - | - | - | 2.6 lbs | $128.00 | |
| 18” | Tray | LT-C90-18-4D | 12" at 90° | 33" x 33" | 48" x 48" | 7 lbs | $206.50 | |
| 18” | Cover | LT-C90-18-4D | - | - | - | 3.95 lbs | $171.00 | |
| 24” | Tray | LT-V90-24-A | 12" at 90° | 39" x 39" | 54" x 54" | 8.35 lbs | $210.00 | |
| 24” | Cover | LT-C90-24-4D | - | - | - | 5.75 lbs | $177.00 |
