Inside 90° Vertical Risers

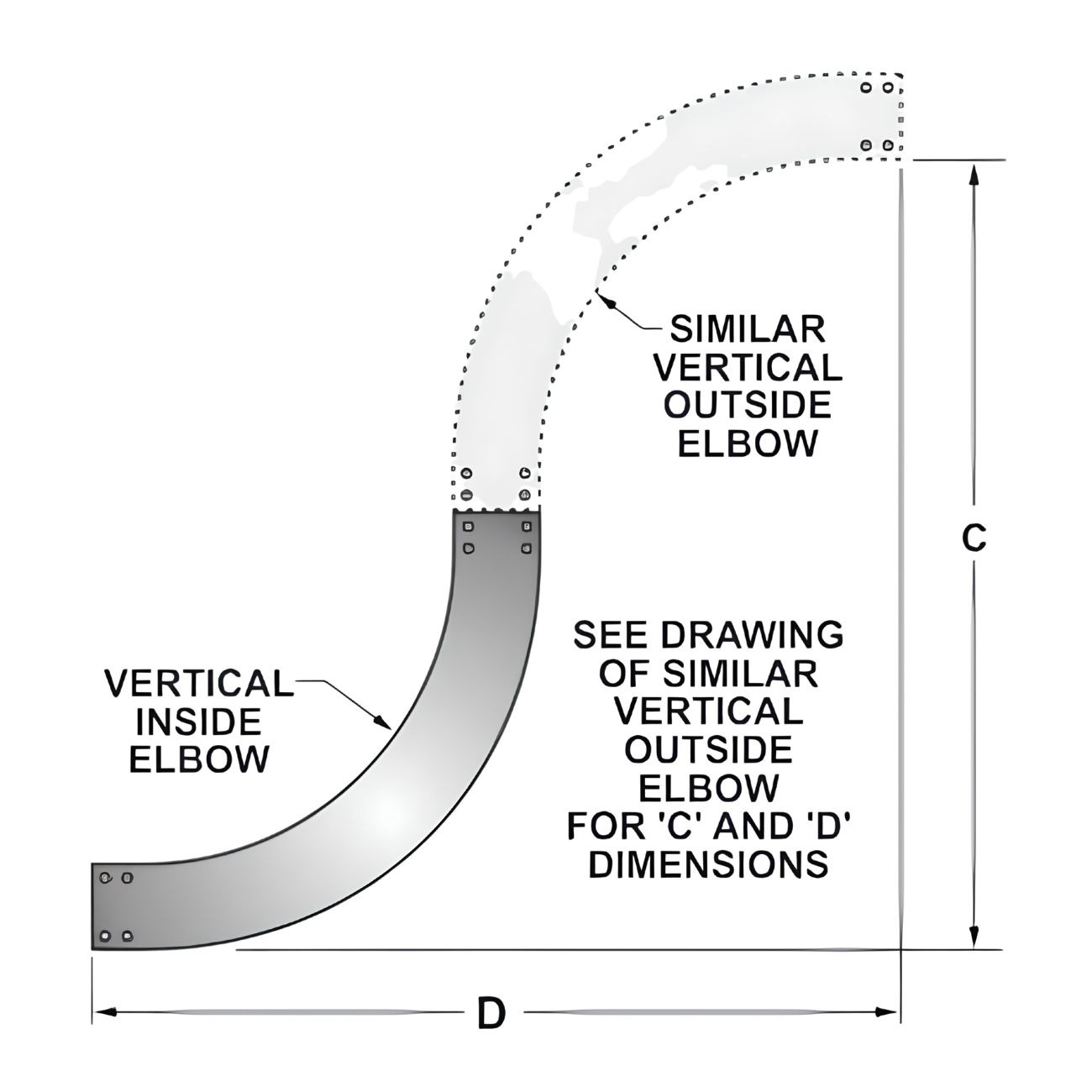

This riser provides a 90° inside-radius transition between horizontal and vertical cable tray runs, maintaining continuous cable support through the change in elevation.
- Extruded aluminum alloys 6063 and 5052 construction
- Ladder-style design with two side rails

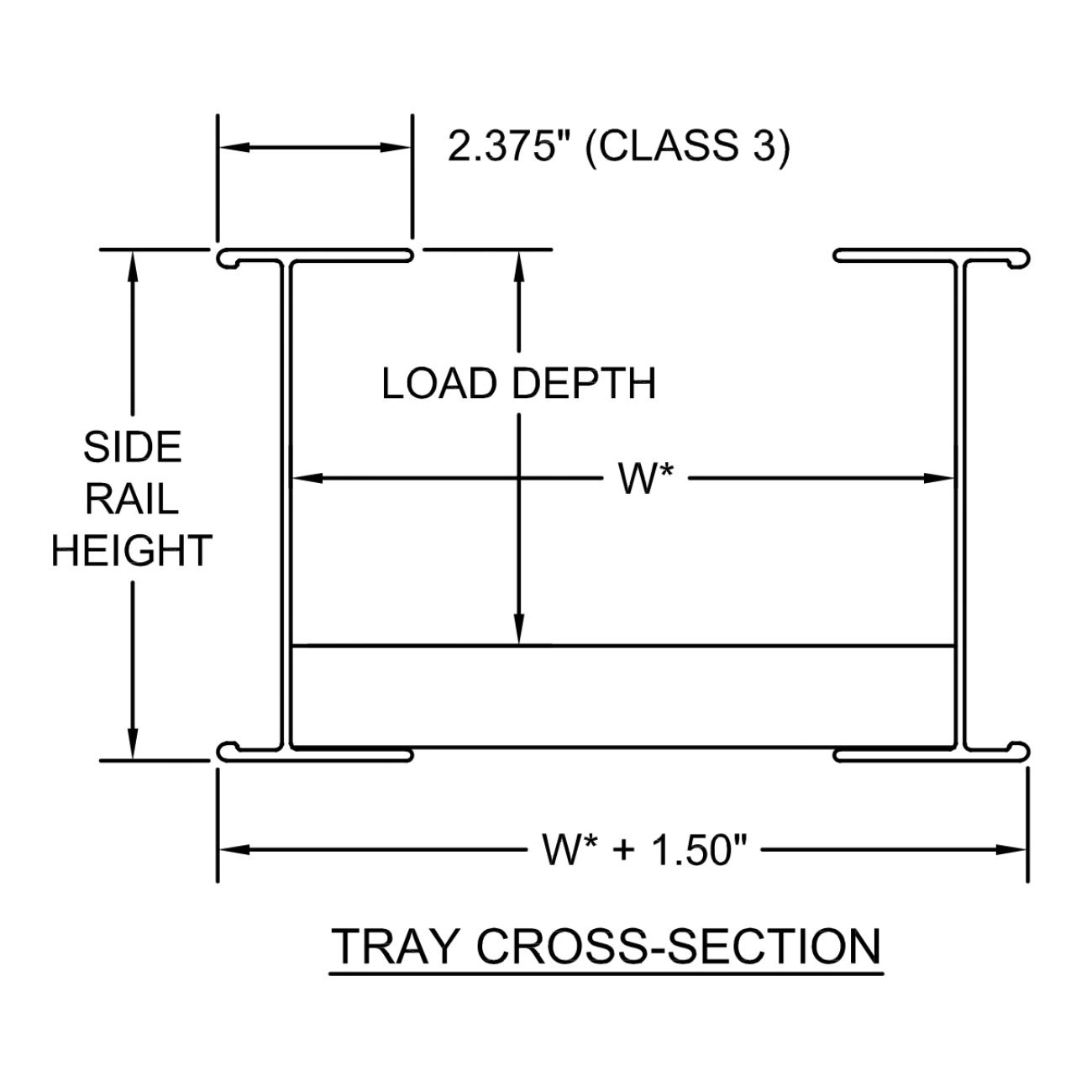

- 1.13" wide tubular rungs, arc-welded on both sides
- Class 3 fitting with 2.375" flanges

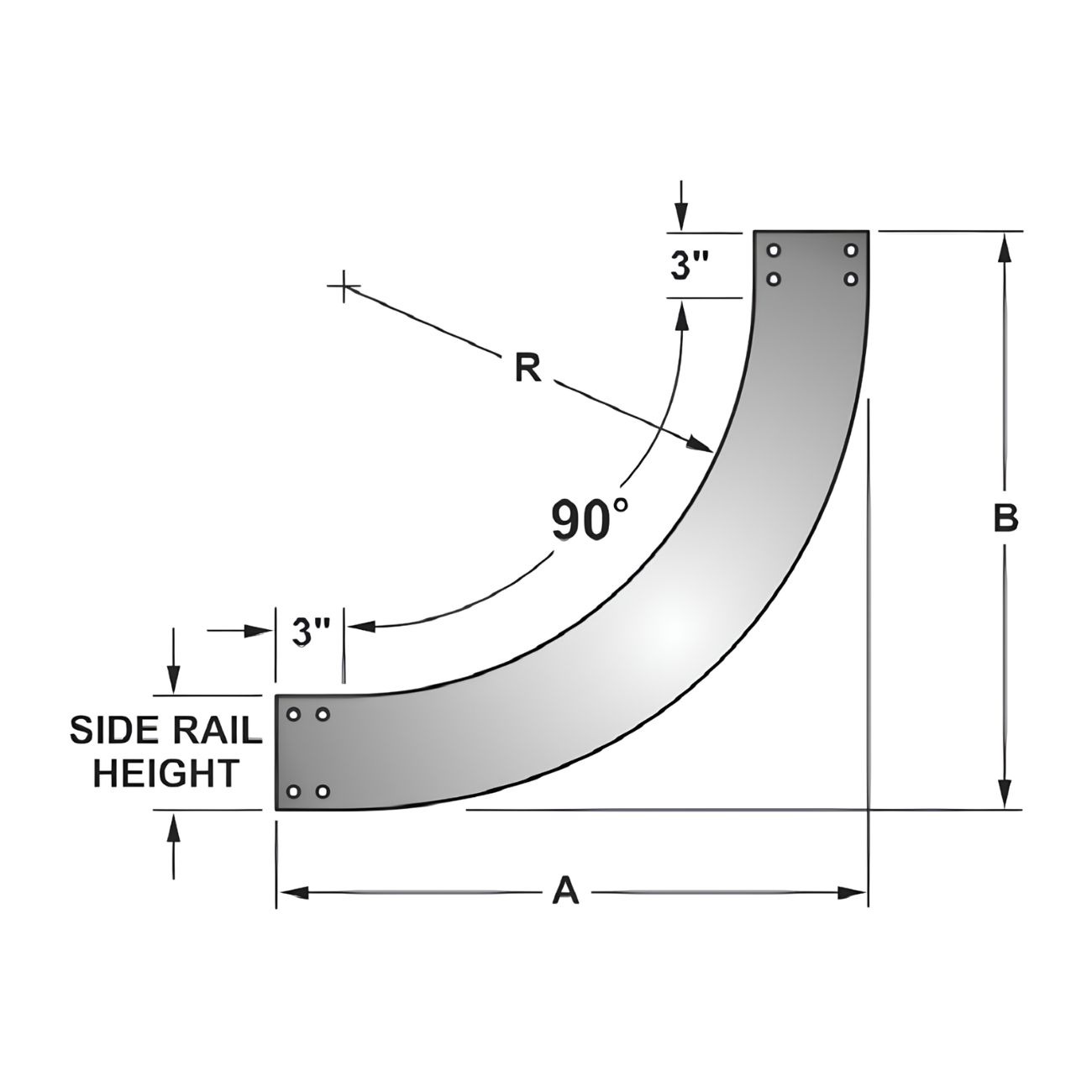

- 3" flat side rail tangents beyond the curvature
- Each section includes a pair of splice plates with fastening hardware
- Splice resistance less than 0.00033 ohms
- UL Classified as an equipment grounding conductor per NEC 392
- Compliant with NEMA VE1, CSA C22.2 No. 126, and NEC Article 392
- Matching covers listed below
| SKU | Size | Type | Pairs With | Bend Radius | Dimensions | Weight | Price |
|---|---|---|---|---|---|---|---|
| 6” | Tray | LT-VRI90-06-A | 12" at 90° | 21-1/4" x 21-1/4" | 4.5 lbs | $205.50 | |
| 6” | Cover | LT-RI90-06-4D | - | - | 1.5 lbs | $104.50 | |
| 9” | Tray | LT-VRI90-09-A | 12" at 90° | 21-1/4" x 21-1/4" | 5 lbs | $227.50 | |
| 9” | Cover | LT-RI90-09-4D | - | - | 1.75 lbs | $106.50 | |
| 12” | Tray | LT-VRI90-12-A | 12" at 90° | 21-1/4" x 21-1/4" | 6 lbs | $233.00 | |
| 12” | Cover | LT-RI90-12-4D | - | - | 2.04 lbs | $124.50 | |
| 18” | Tray | LT-VRI90-18-A | 12" at 90° | 21-1/4" x 21-1/4" | 7 lbs | $243.50 | |
| 18” | Cover | LT-RI90-18-4D | - | - | 3 lbs | $137.50 | |
| 24” | Tray | LT-VRI90-24-A | 12" at 90° | 21-1/4" x 21-1/4" | 8 lbs | $280.00 | |
| 24” | Cover | LT-RI90-24-4D | - | - | 3.75 lbs | $153.00 |
