45° Horizontal Bends

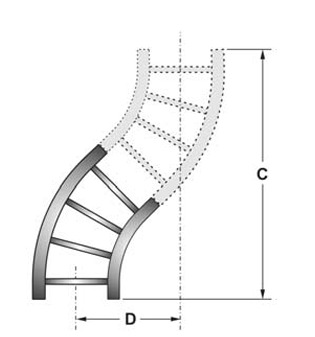

This bend provides a 45° change of direction when connecting straight cable tray sections, maintaining continuous cable support and routing through the turn.
- Extruded aluminum alloy 6063 construction
- Ladder-style design with two side rails
- 1.13" wide tubular rungs, arc-welded on both sides
- Class 3 fitting with 2.375" flanges
- 3" flat side rail tangents beyond the curvature
- Each section includes splice plates and fastening hardware
- Splice resistance less than 0.00033 ohms
- UL Classified as an equipment grounding conductor per NEC 392
- Compliant with NEMA VE1, CSA C22.2 No. 126, and NEC Article 392
- Matching covers listed below
| SKU | Width (W) | Type | Pairs With | Bend Radius (R) | Footprint (AxB) | Offset (CxD) | Weight | Price |
|---|---|---|---|---|---|---|---|---|
| 6” | Tray | LT-V45-06-A | 12" at 45° | 17-7/8" x 11-5/8" | 31-1/2" x 13" | 2 lbs | $111.00 | |
| 6” | Cover | LT-C45-06-4D | - | - | - | 1 lb | $57.10 | |
| 9” | Tray | LT-V45-09-A | 12" at 45° | 20" x 14-5/8" | 33-5/8" x 13-7/8" | 2.5 lbs | $117.50 | |
| 9” | Cover | LT-C45-09-4D | - | - | - | 1 lb | $58.90 | |
| 12” | Tray | LT-V45-12-A | 12" at 45° | 22-1/8" x 17-5/8" | 35-3/4" x 14-3/4" | 3 lbs | $124.50 | |
| 12” | Cover | LT-C45-12-4D | - | - | - | 1.25 lbs | $65.40 | |
| 18” | Tray | LT-V45-18-A | 12" at 45° | 26-3/8" x 23-5/8" | 40" x 16-1/2" | 4 lbs | $137.50 | |
| 18” | Cover | LT-C45-18-4D | - | - | - | 1.95 lbs | $86.10 | |
| 24” | Tray | LT-V45-24-A | 12" at 45° | 30-5/8" x 29-5/8" | 44-1/8" x 18-1/4" | 5 lbs | $151.00 | |
| 24" | Cover | LT-C45-24-4D | - | - | - | 2.75 lbs | $91.40 |
