45° Horizontal Bends
$137.50
Part Number: LT-C45-18-4D
Specifications
| Width (W): | 18” |
|---|---|
| Type: | Tray |
| Pairs With: | LT-V45-18-A |

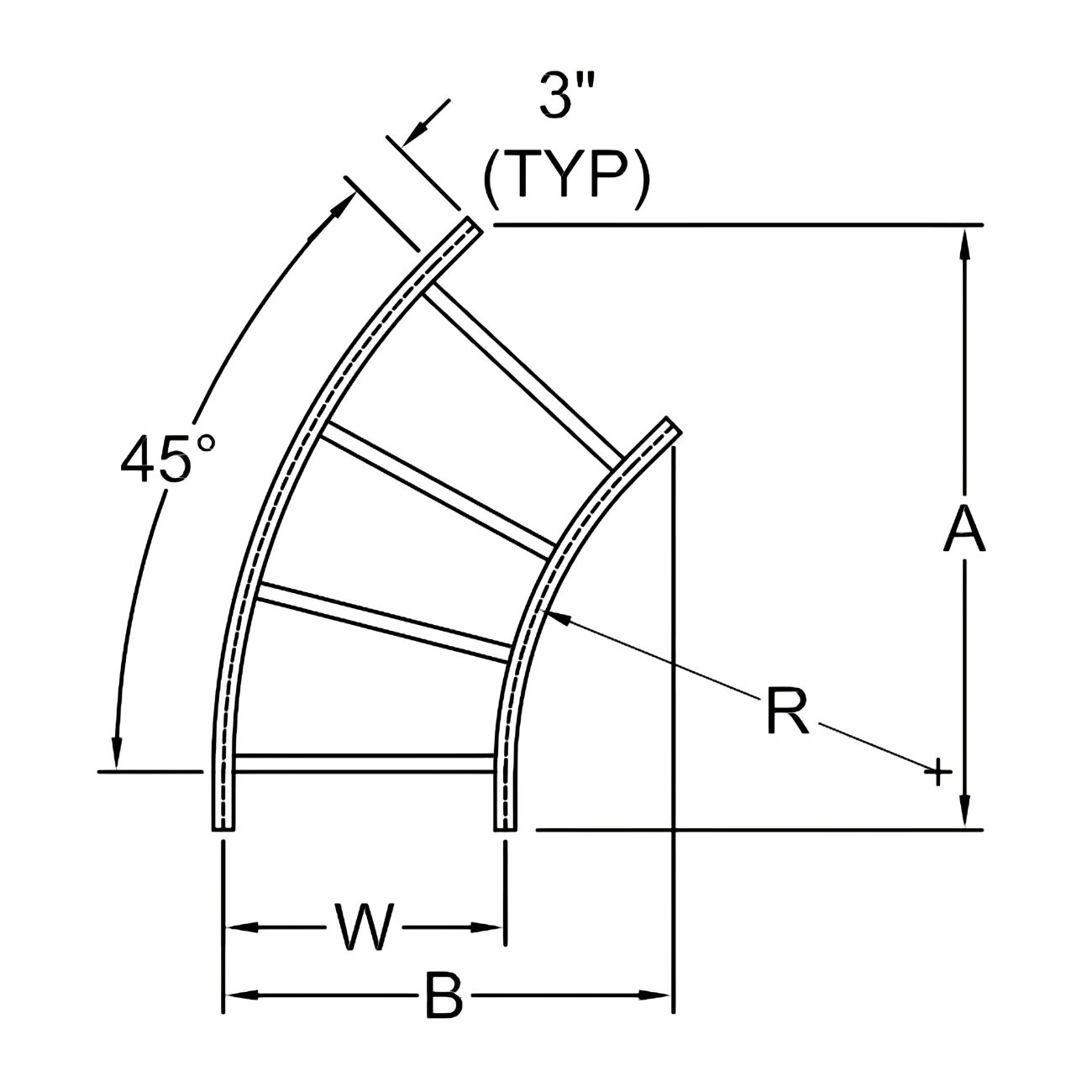

| Bend Radius (R): | 12" at 45° |
| Footprint (AxB): | 26-3/8" x 23-5/8" |
| Offset (CxD): | 40" x 16-1/2" |
| Weight: | 4 lbs |
| UoM: | 1 |
In Stock
Available for delivery.
Typically ships in 1-2 days.
This bend provides a 45° change of direction when connecting straight cable tray sections, maintaining continuous cable support and routing through the turn.
- Extruded aluminum alloy 6063 construction
- Ladder-style design with two side rails
- 1.13" wide tubular rungs, arc-welded on both sides

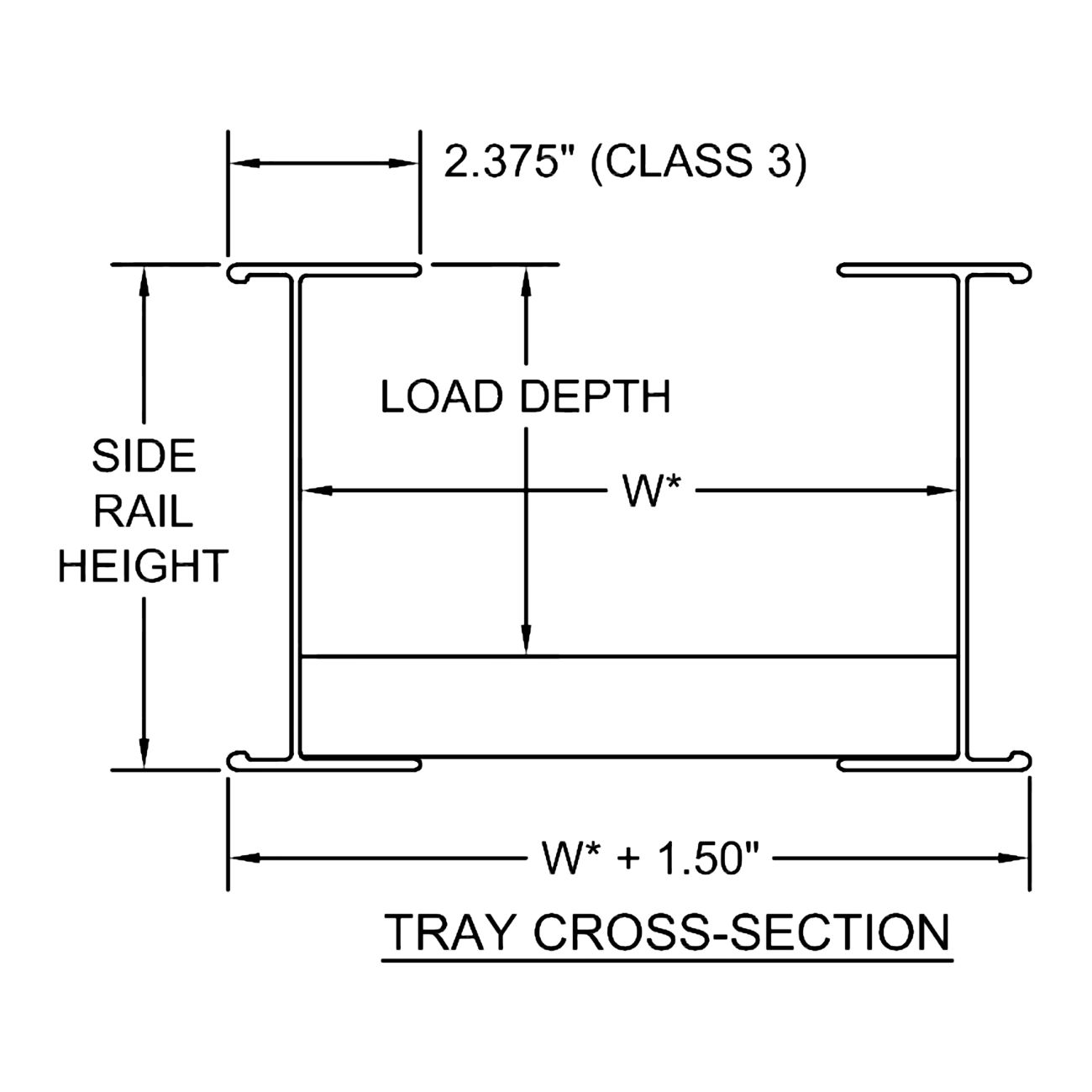

- Class 3 fitting with 2.375" flanges
- 3" flat side rail tangents beyond the curvature
- Each section includes splice plates and fastening hardware
- Splice resistance less than 0.00033 ohms
- UL Classified as an equipment grounding conductor per NEC 392
- Compliant with NEMA VE1, CSA C22.2 No. 126, and NEC Article 392
- Matching covers listed below
